Wiper Switch: Testing and Inspection

Wiper Switch Test

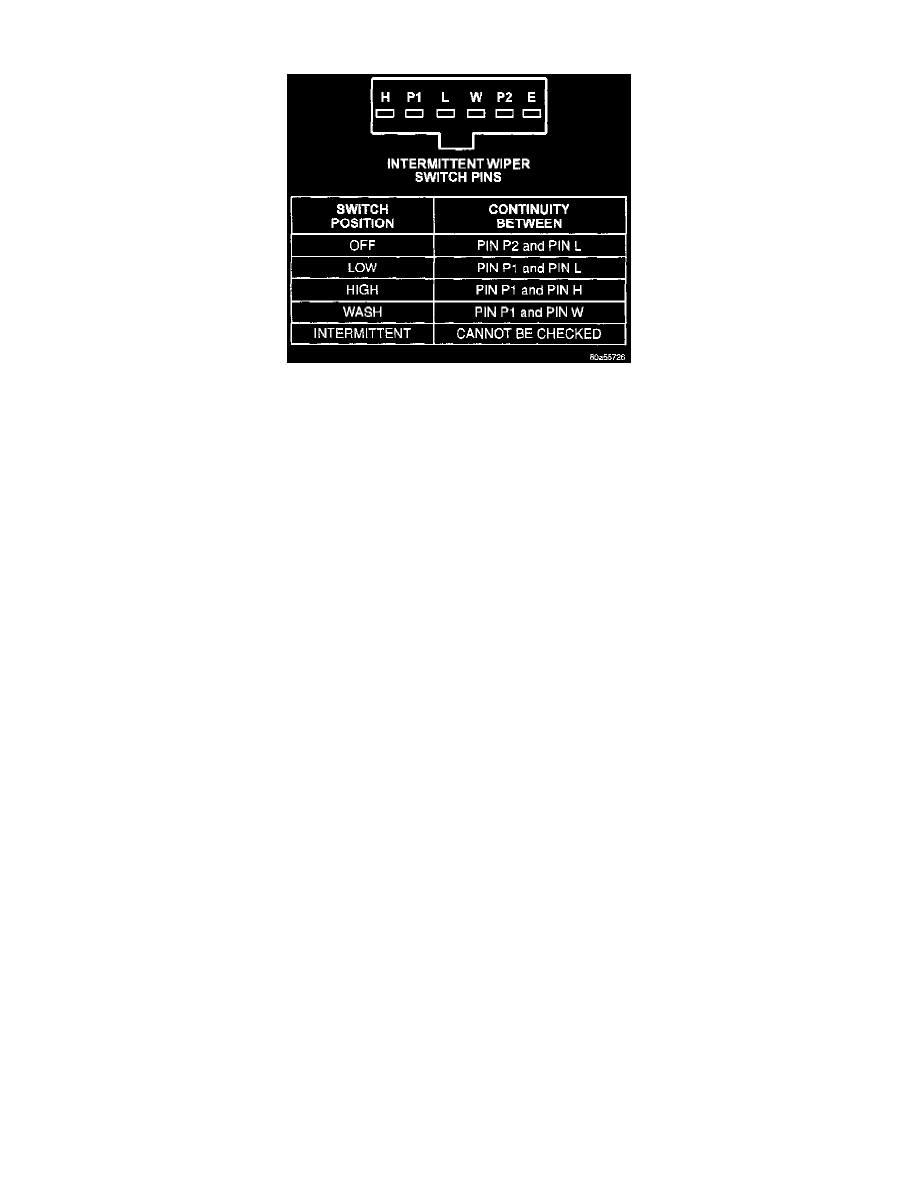

To test the switch, first disconnect the switch wires from the body wiring in the steering column. Using an ohmmeter, test for continuity between the
terminals of the switch, as indicated.
