Nitro 2WD V6-4.0L (2007)
EGR Valve: Locations
Component ID:
14
Component :

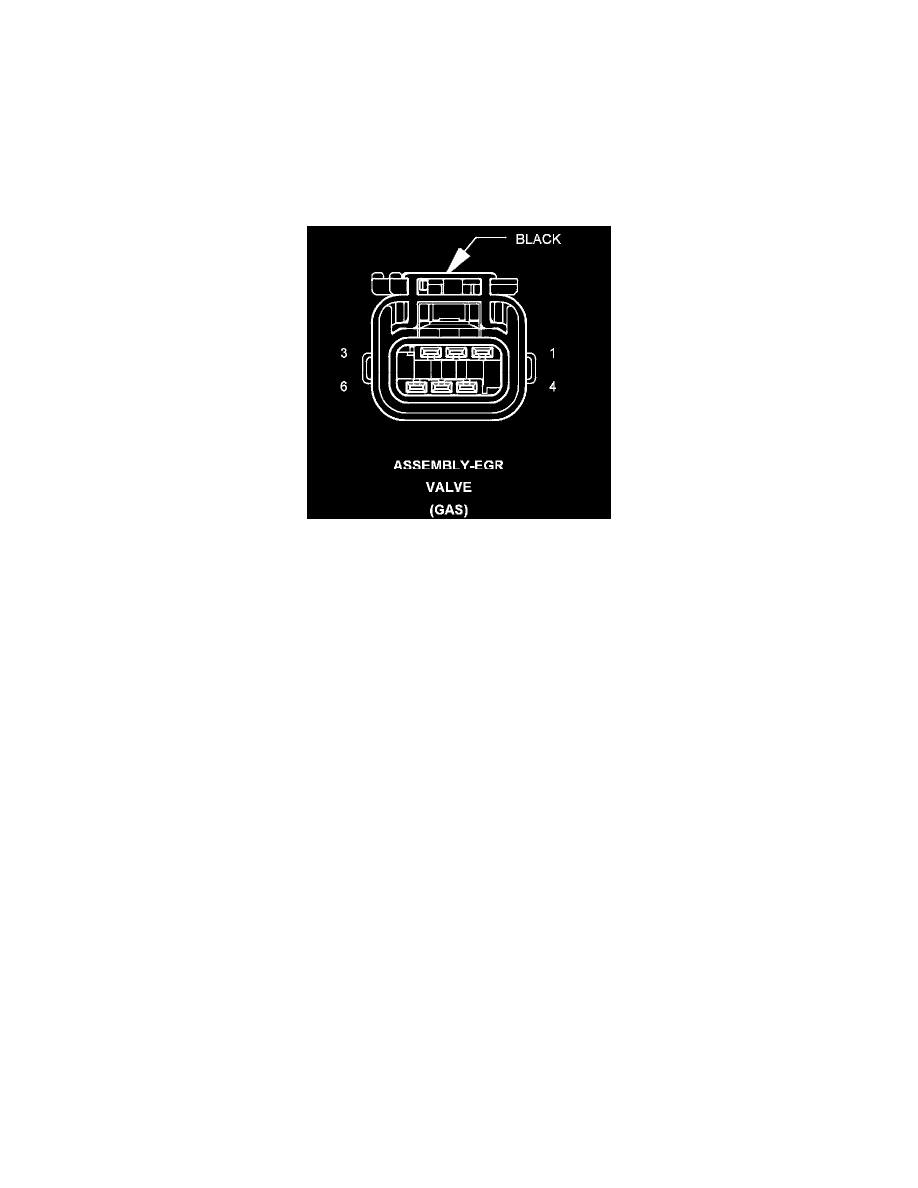

ASSEMBLY-EGR VALVE
Connector:
Name :
ASSEMBLY-EGR VALVE
Color :
BLACK
# of pins :
6
Qualifier :
(GAS)
Pin
Description
Circuit
1
EGR SIGNAL
K34 18DB/LG
2
5 VOLT SUPPLY
K857 18BR/LG
3
SENSOR GROUND
K900 18DB/DG
4
GROUND
Z904 18BK
5
-
-
6
EGR CONTROL
K35 18DB/VT
Component Location - 15
