Nitro 2WD V6-4.0L (2007)
Shifter A/T: Locations
Component ID:
17
Component :

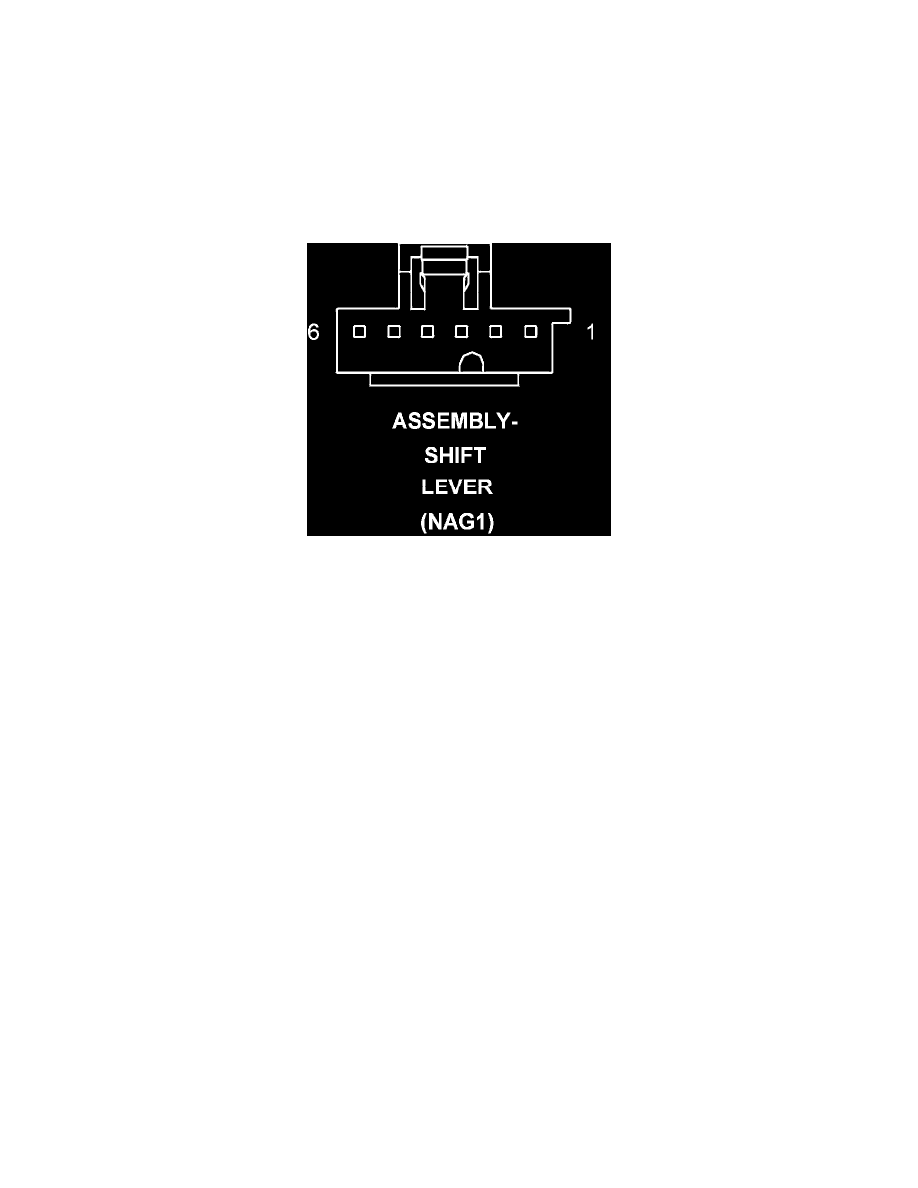

ASSEMBLY-SHIFT LEVER
Connector:
Name :
ASSEMBLY-SHIFT LEVER
Color :
# of pins :
6
Qualifier :
(NAG1)
Gender :
FEMALE
Pin
Description
Circuit
1
IGNITION SWITCH OUTPUT (UNLOCK-RUN-START)
F1 20PK/WT
2
GROUND
Z910 18BK/GY
3
BRAKE LAMP SWITCH OUTPUT
L51 18WT/DG
4
-
-
5
CAN C BUS (+)
D65 20WT/LG
6
CAN C BUS (-)
D64 20WT/LB
Component Location - 41
