RAM 1500 Truck 4WD V6-3.7L VIN K (2002)

Page 1
background image

Transmission Control Module: Locations

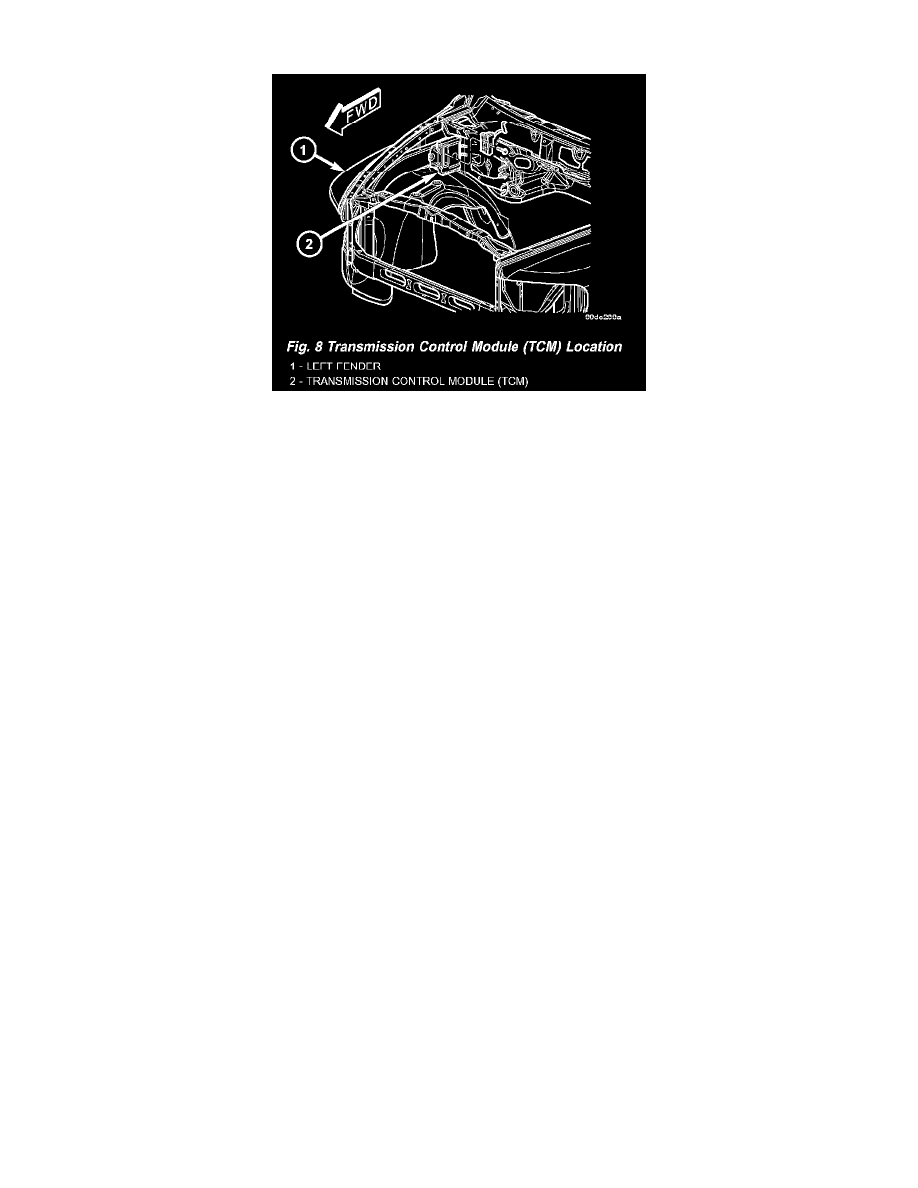

Fig. 8 Transmission Control Module (TCM) Location

The Transmission Control Module (TCM) is located in the engine compartment on the left side inner fender.
