RAM 1500 Truck 4WD V8-4.7L VIN N (2003)
Drive/Propeller Shaft: Service and Repair
Removal and Installation
Front
FRONT PROPELLER SHAFT
REMOVAL
1. Position transmission and transfer case into neutral.
2. Raise and support vehicle.
3. Remove exhaust crossover pipe.

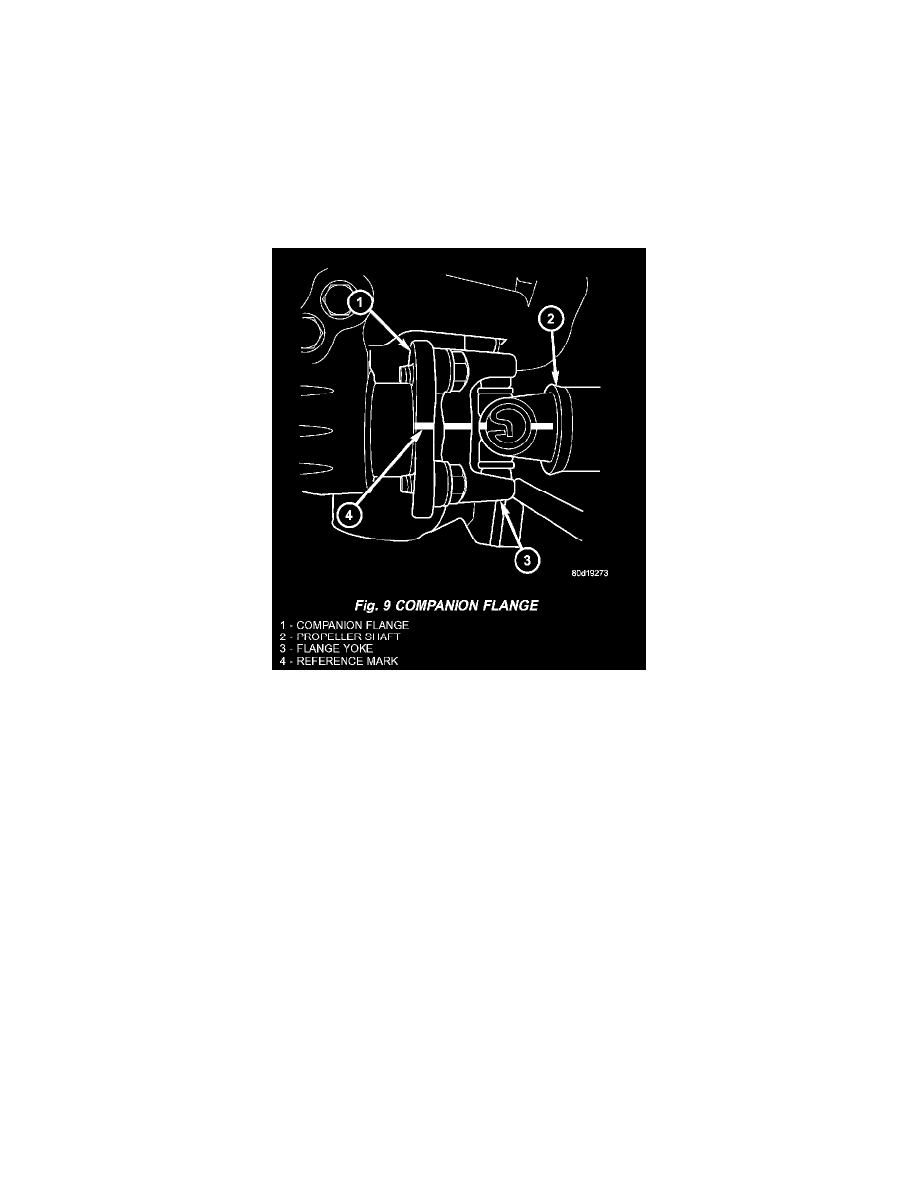

4. Mark a line across the axle companion flange and propeller shaft flange yoke (Fig. 9) for installation reference.
5. Remove companion flange bolts.
