Page 4

background image

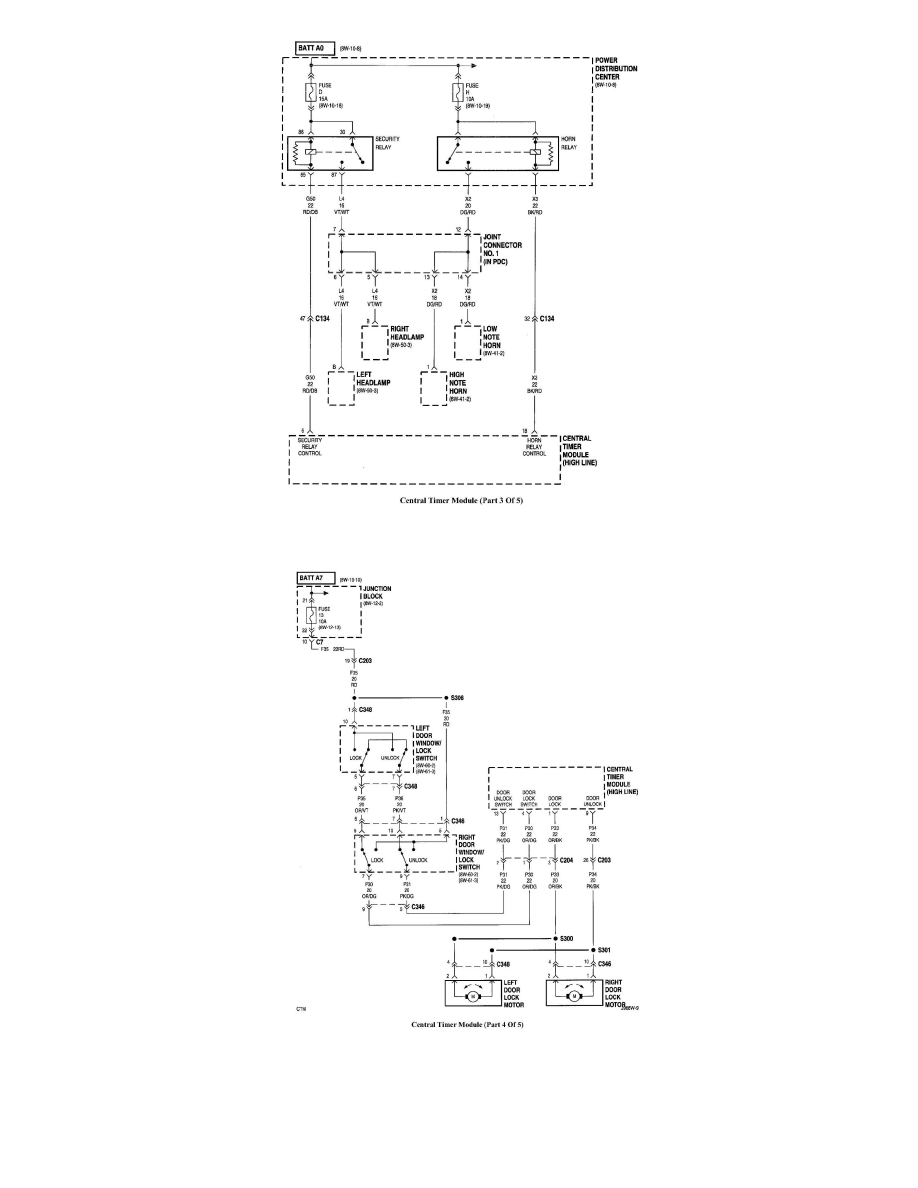

CTM (3 Of 5)

CTM (4 Of 5)

Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Central Timer Module <--> [Body Control Module] / Component Information
Diagrams / Diagram Information and Instructions
Page 2334
