RAM 2500 Truck 4WD V8-5.9L VIN Z LDC (1998)

Page 1
background image

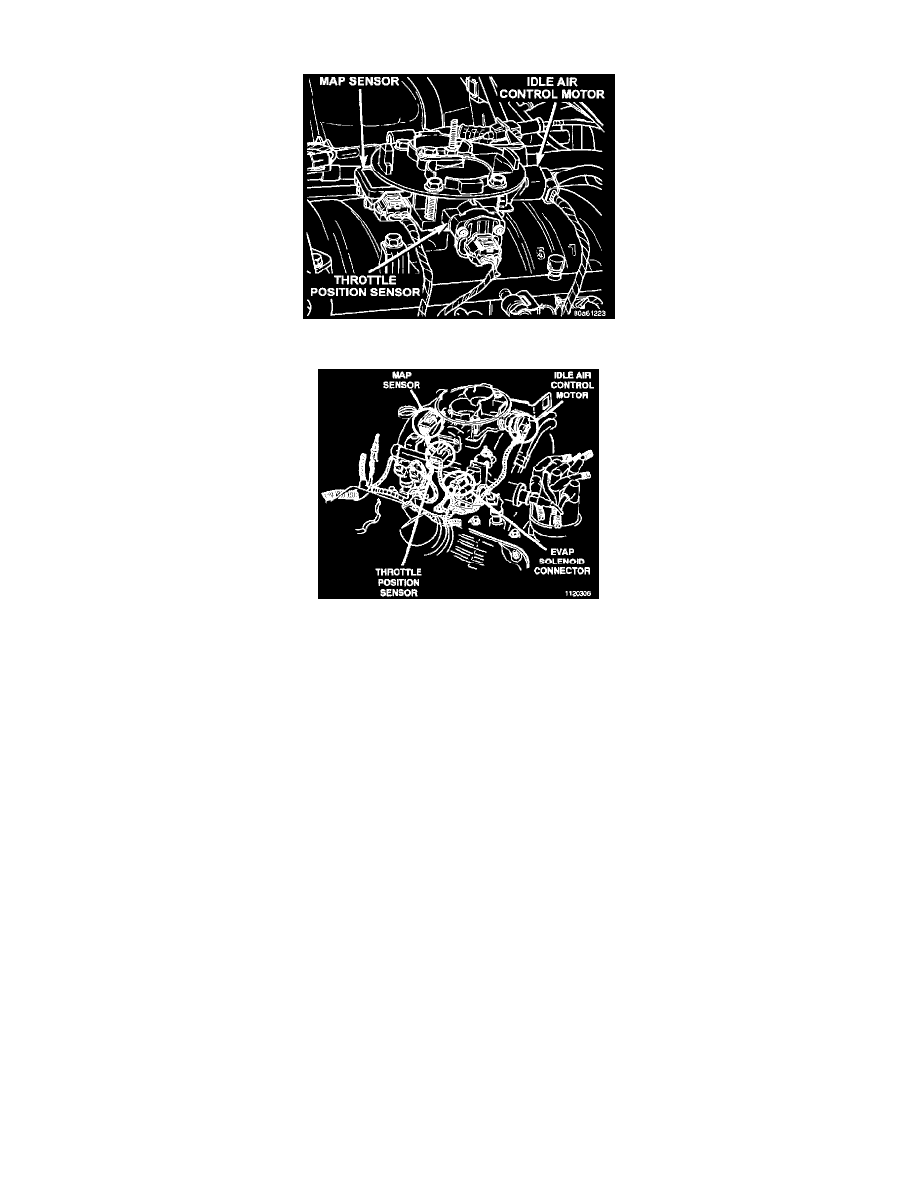

Throttle Position Sensor: Locations

MAP Sensor, Throttle Position Sensor, Idle Air Control Motor
