Page 1

background image

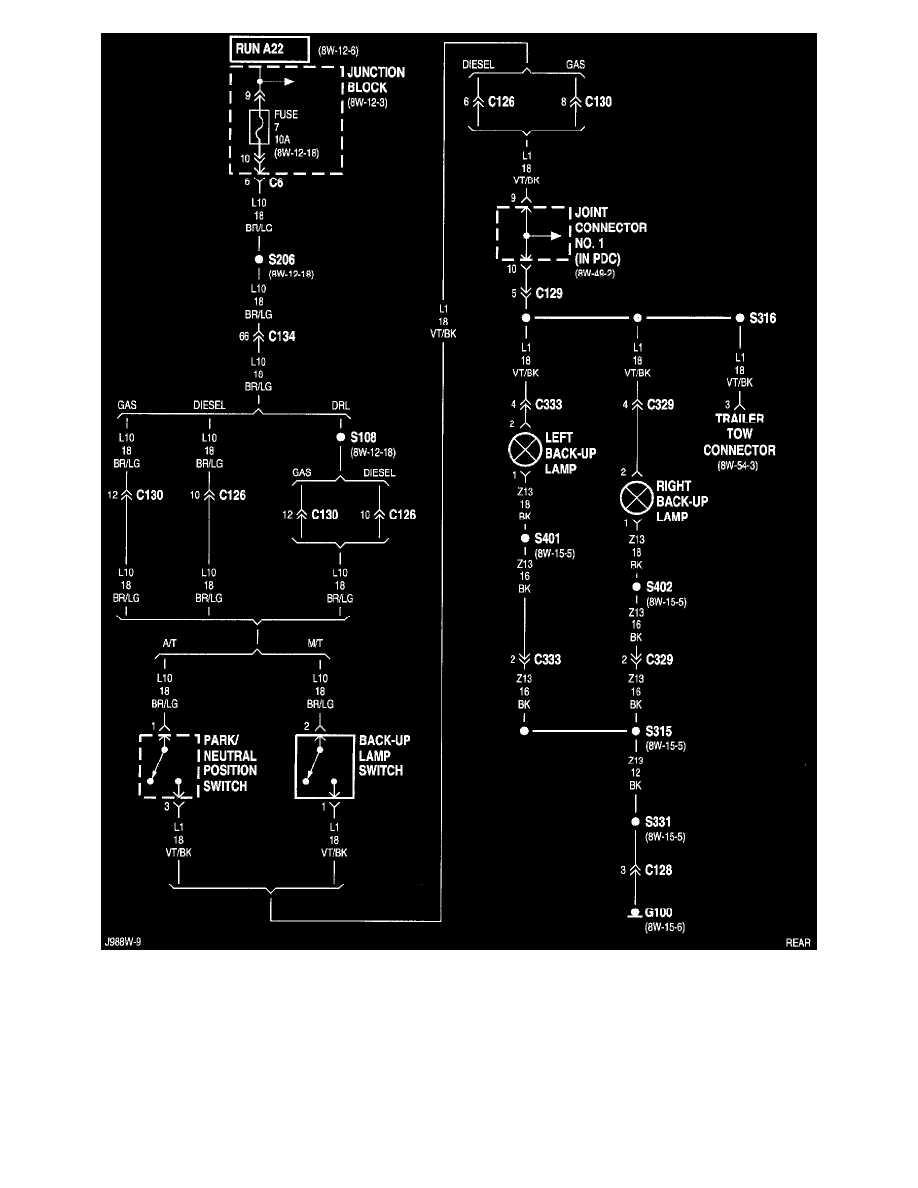

Rear Lighting

Sensors and Switches
Sensors and Switches - Lighting and Horns / Backup Lamp Switch / Component Information
Diagrams / Diagram Information and Instructions
Page 802
