RAM 3500 Truck 2WD L6-5.9L DSL Turbo VIN 6 (1999)

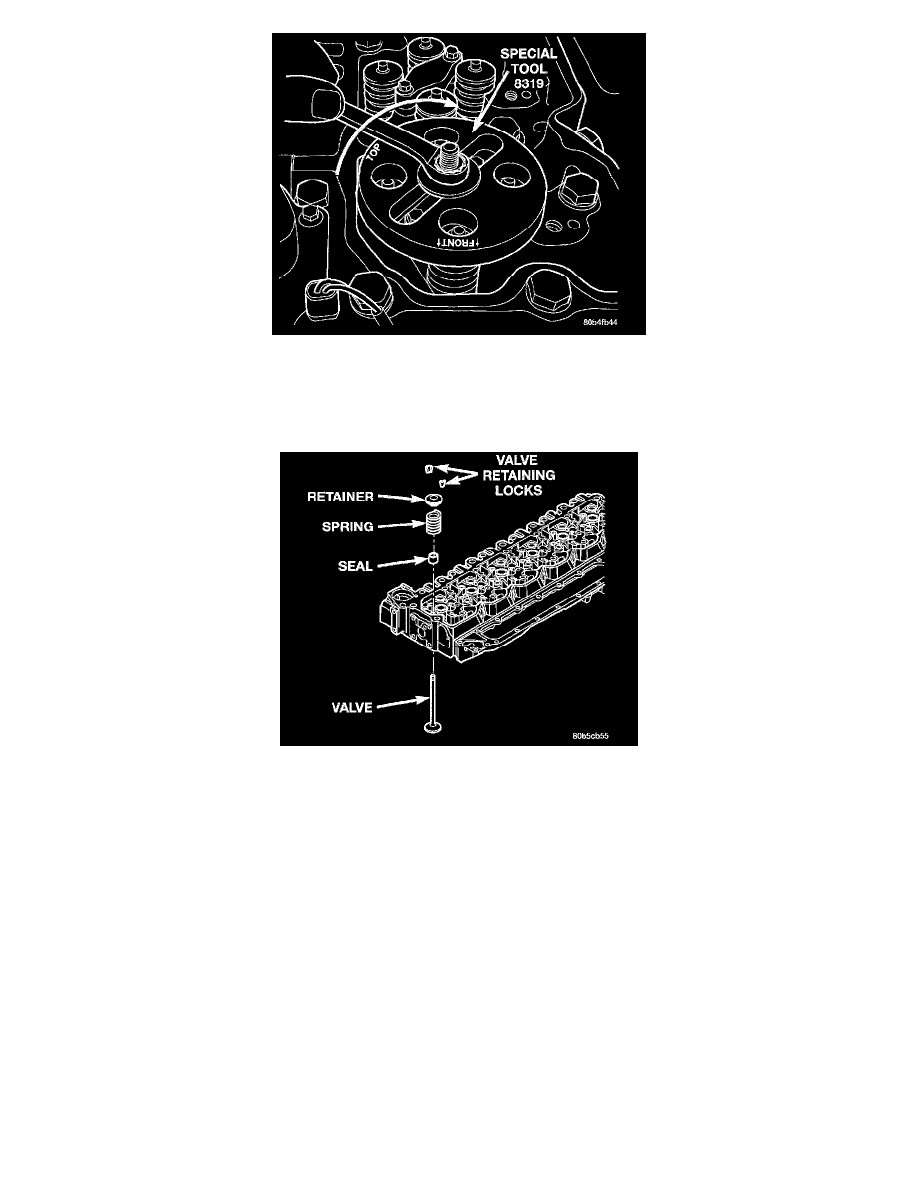

Compressing Valve Springs With Tool 8319
5. Install the compressor top plate, washer, and nut. Using a suitable wrench, tighten the nut (clockwise) to compress the valve springs and remove
the locks.
6. Rotate the compressor nut counter-clockwise to relieve tension on the springs. Remove the spring compressor.
Valve Spring, Seal, And Retainers
7. Remove the retainers, springs, valve seals (if necessary), and valves. Arrange or number all components so they can be installed in their original
locations.
8. Repeat the procedure on all cylinders to be serviced.
CLEANING
Clean the valve stems with crocus cloth or a Scotch-Britelf9l pad. Remove carbon with a soft wire brush. Clean valves, springs, retainers, and valve
retaining locks in a suitable solvent. Rinse in hot water and blow dry with compressed air.
INSPECTION
