RAM 3500 Truck 2WD L6-5.9L DSL Turbo VIN 6 (1999)

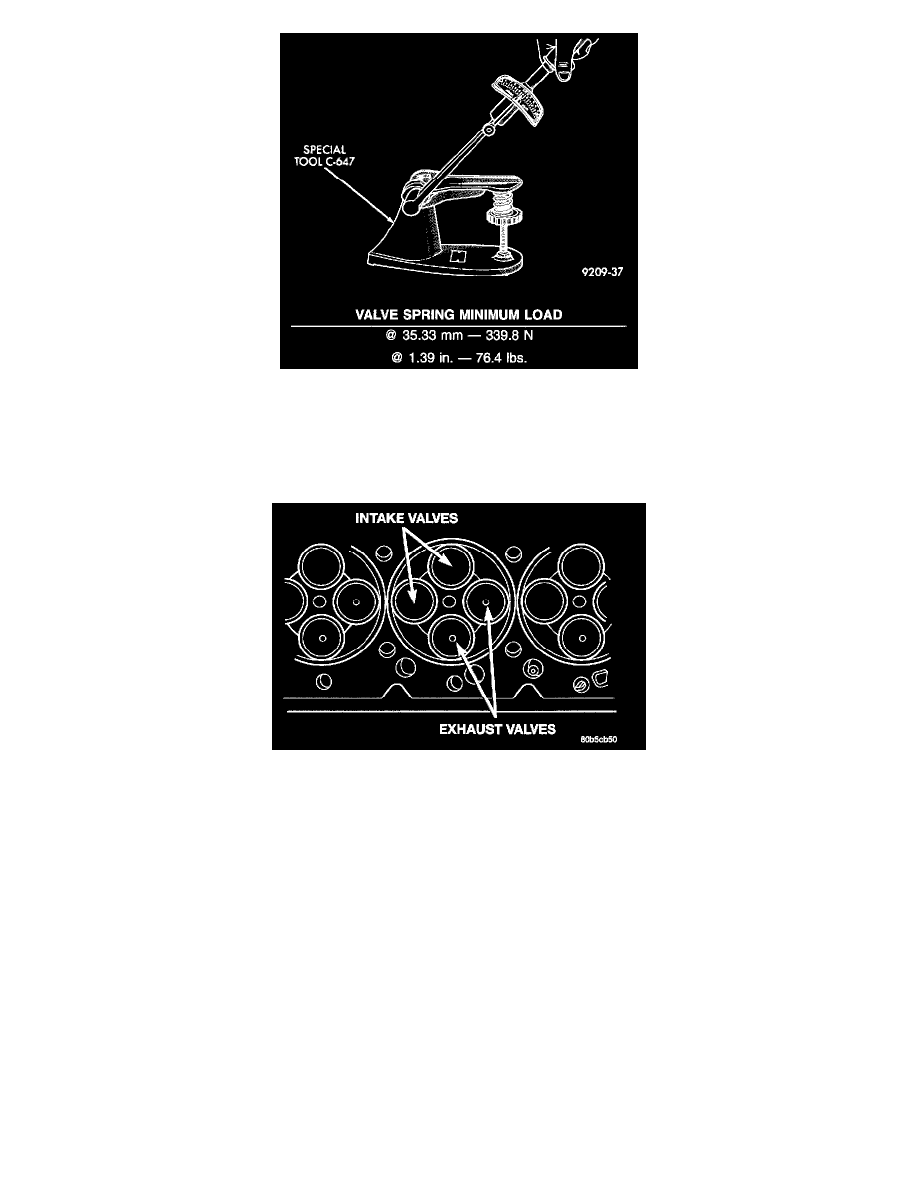

Testing Valve Spring With Tool C-647
Test valve spring force with tool C-647.
INSTALLATION
1. Install new valve seals. The yellow springs are for the intake valves and the green seals are for the exhaust valves.
Valve Identification
2. Install the valves in their original position. The exhaust valves are identified by a dimple on the valve head.
3. Install the valve springs and retainer.
4. Install the valve spring compressor tool 8319 as shown.
5. Compress the valve springs and install the valve retaining locks.
6. Remove the compressor and repeat the procedure on the remaining cylinders.
7. Install the injector clamp and hold down bolts and tighten to 10 Nm (89 inch lbs.) torque.
8. Install the cylinder head.
