RAM 3500 Truck 2WD L6-5.9L DSL Turbo VIN 6 (1999)
Drive/Propeller Shaft: Adjustments
Adjustment at Axle With Leaf Springs

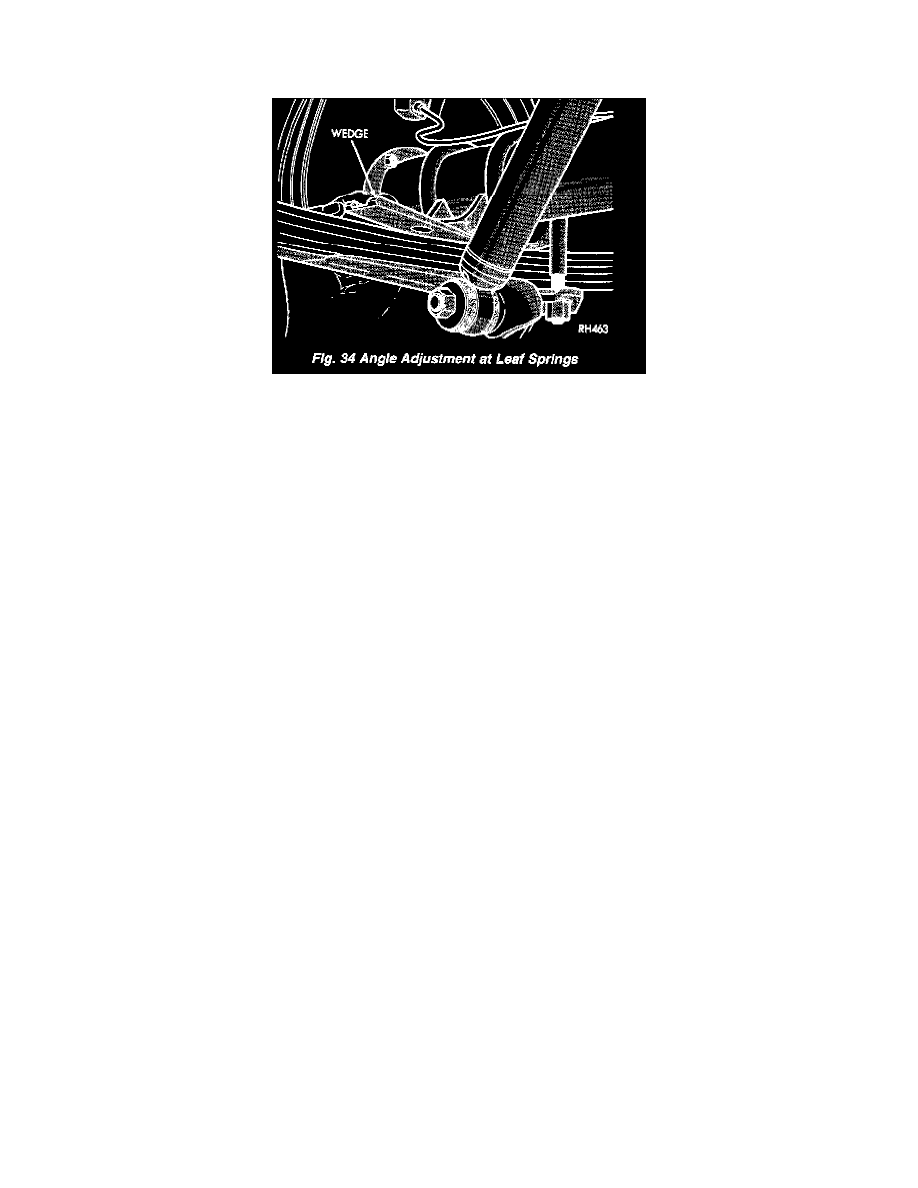

Fig. 34
Adjust the pinion shaft angle at the springs with tapered shims. Install tapered shims between the springs and axle pad to correct the angle. Refer to
Steering and Suspension, for additional information
