RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)
Speaker: Service and Repair
Speaker Replacement
REMOVAL
A-Pillar Tweeter
The A-pillar-mounted tweeters are used only with the optional Infinity premium speaker package.
1. Disconnect and isolate the battery negative cable.
2. If the vehicle is so equipped, remove the grab handle from the A-pillar.
3. Disengage the trim from the A-pillar.

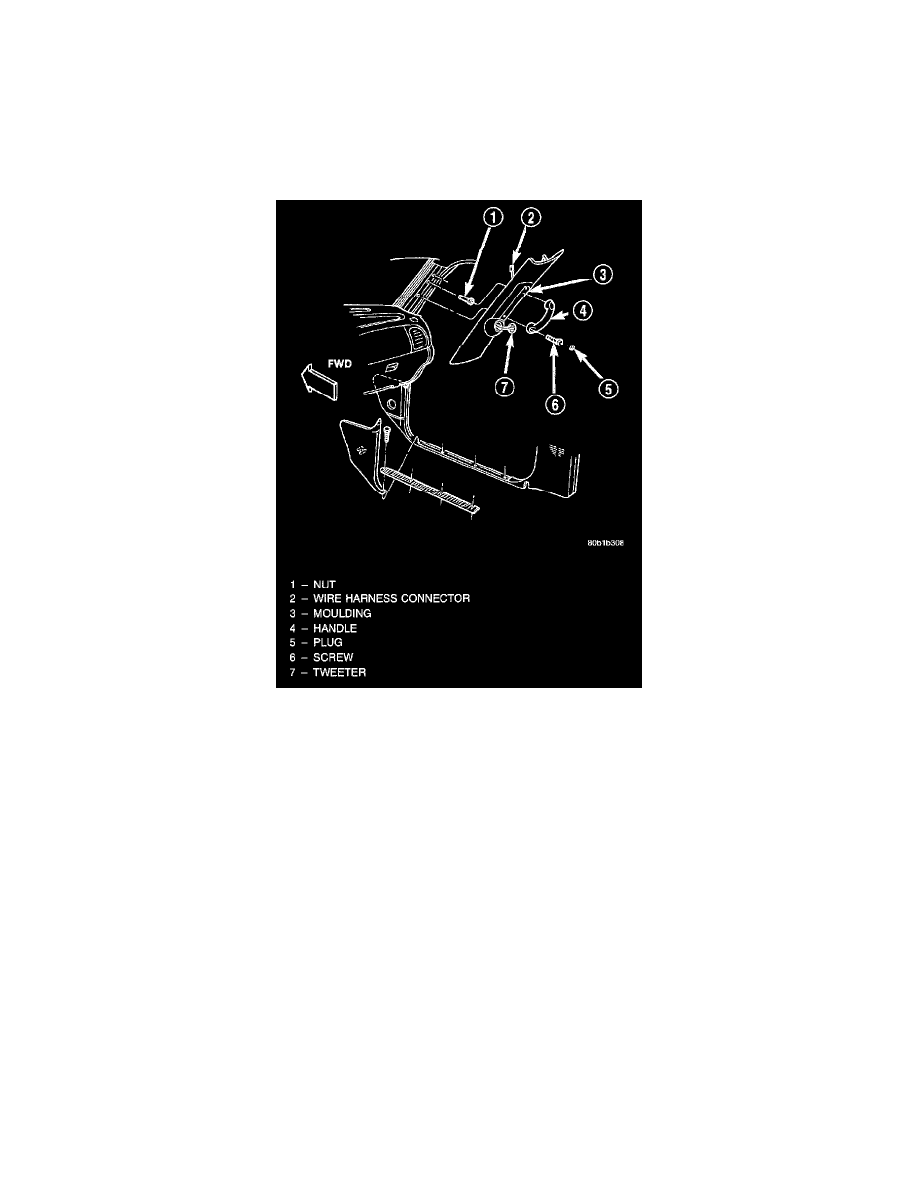

A-Pillar Tweeter Remove/Install
4. Pull the trim away from the A-pillar far enough to access the tweeter wire harness connector.
5. Disconnect the body wire harness connector from the A-pillar tweeter wire harness connector.
6. Remove the trim and tweeter from the A-pillar as a unit,
7. Disengage the tweeter wire harness retainers from the heat stakes on the back of the A-pillar trim.
8. Disengage the tweeter from the A-pillar trim by pushing out on the tweeter firmly and evenly from the inside of the trim until it unsnaps from
the mounting hole.
9. Remove the tweeter from the mounting hole in the A-pillar trim.
Front Door Speaker
1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the front door.
