RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)
Rear Fender Liner: Service and Repair
REAR WHEELHOUSE SPLASH SHIELD
REMOVAL

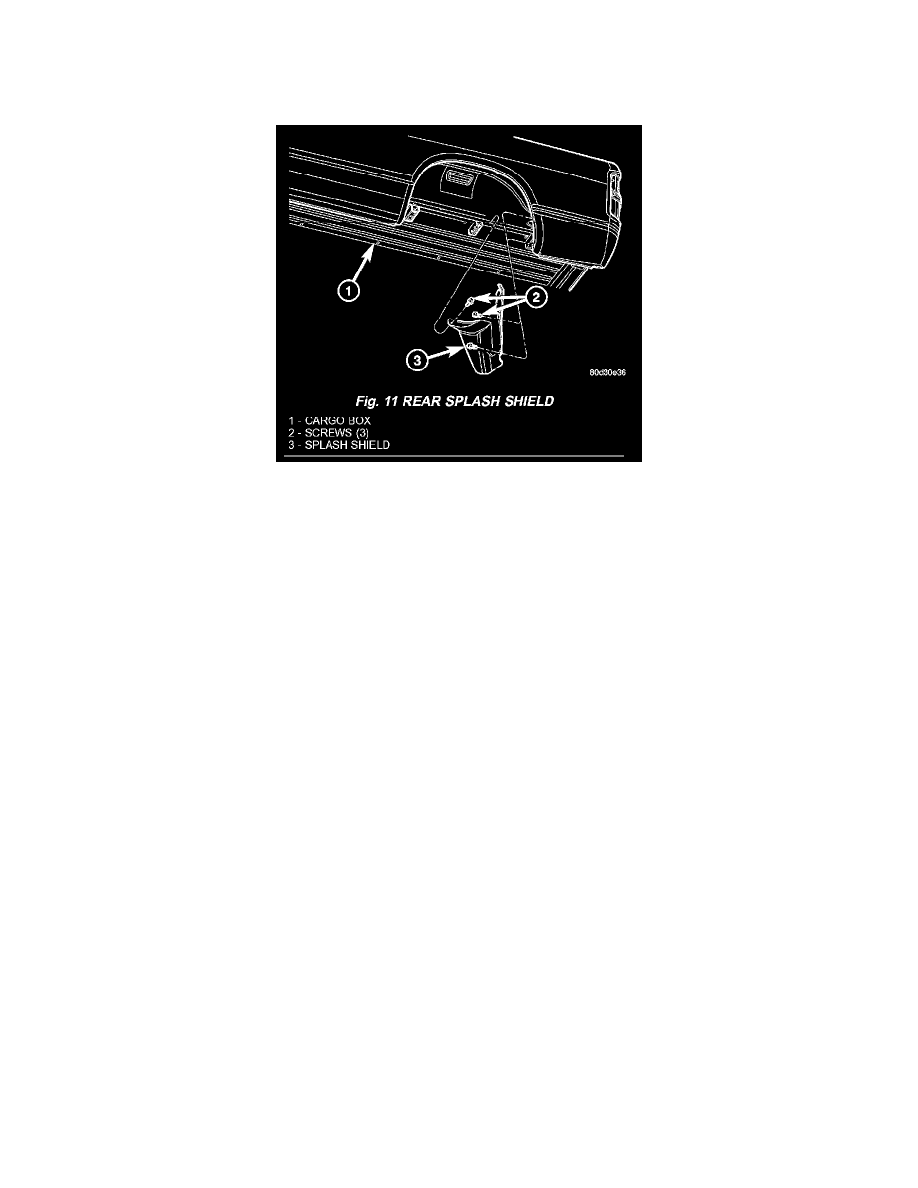

Fig. 11
1. Remove the screws and remove the shield. (Fig. 11)
INSTALLATION
1. Install the splash shield and install the screws.
