RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)

Page 1
background image

Manifold Absolute Pressure (MAP) Sensor: Locations

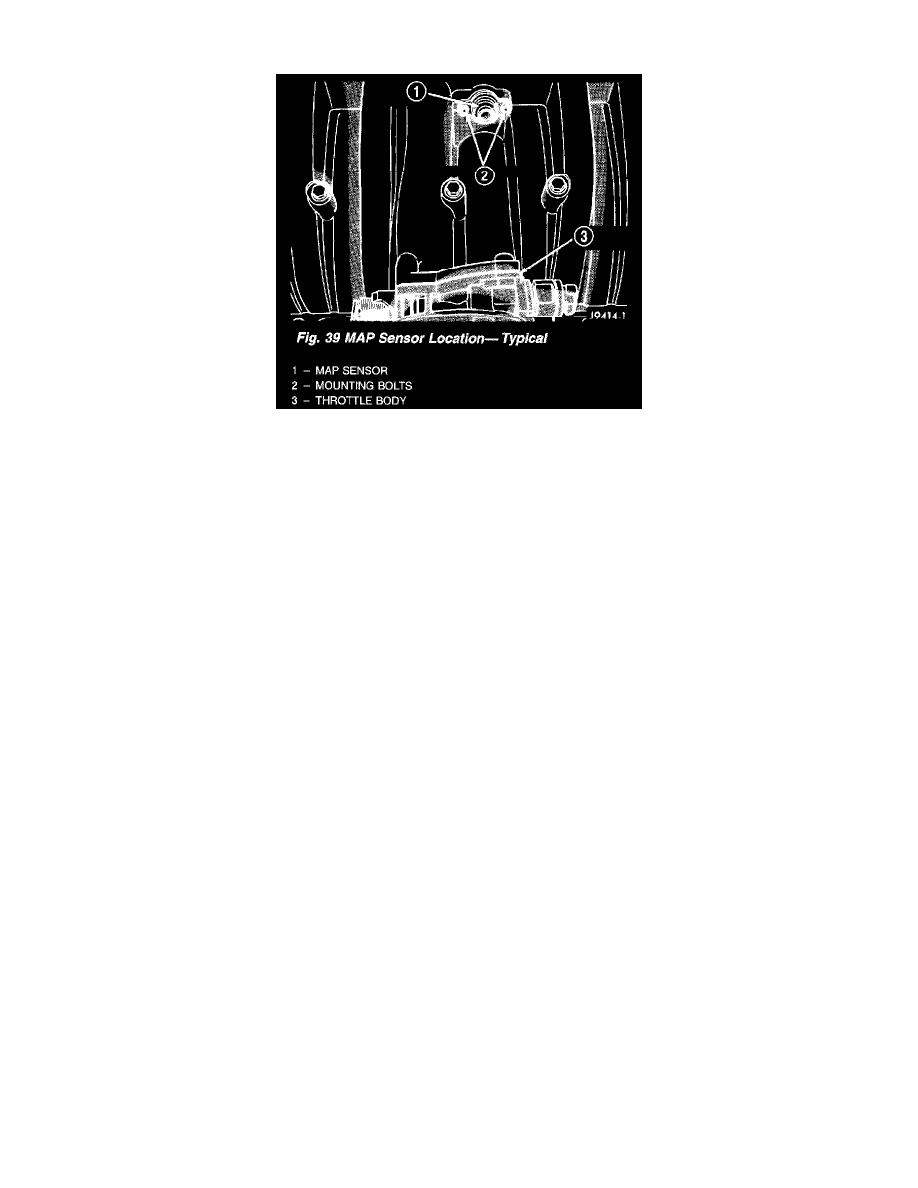

Fig. 39 MAP Sensor Location (Typical)

The MAP sensor is mounted into the right upper side of the intake manifold. A rubber gasket is used to seal the sensor to the intake manifold. The rubber
gasket is part of the sensor and is not serviced separately.
