RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)

Page 1
background image

Idle Air Control (IAC) Motor: Locations

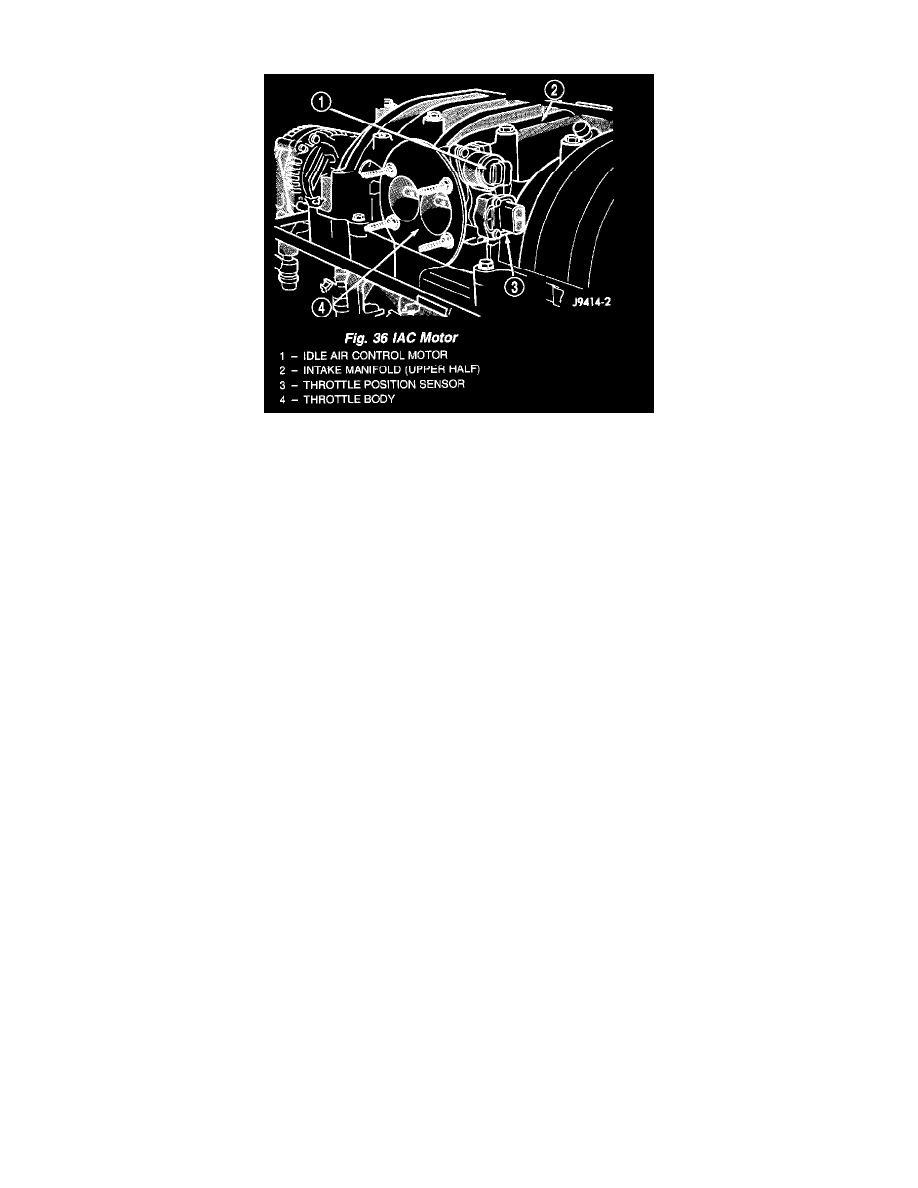

Fig. 36 IAC Motor

The IAC motor is located on the back of the throttle body.
