RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)
squarely into fitting body. If this retainer is cocked during removal, it may be difficult to disconnect fitting. Use an open-end wrench on
shoulder of plastic retainer ring to aid in disconnection.
b. After disconnection, plastic retainer ring Will remain with quick-connect fitting connector body.
c. Inspect fitting connector body, plastic retainer ring and fuel system component for damage. Replace as necessary.

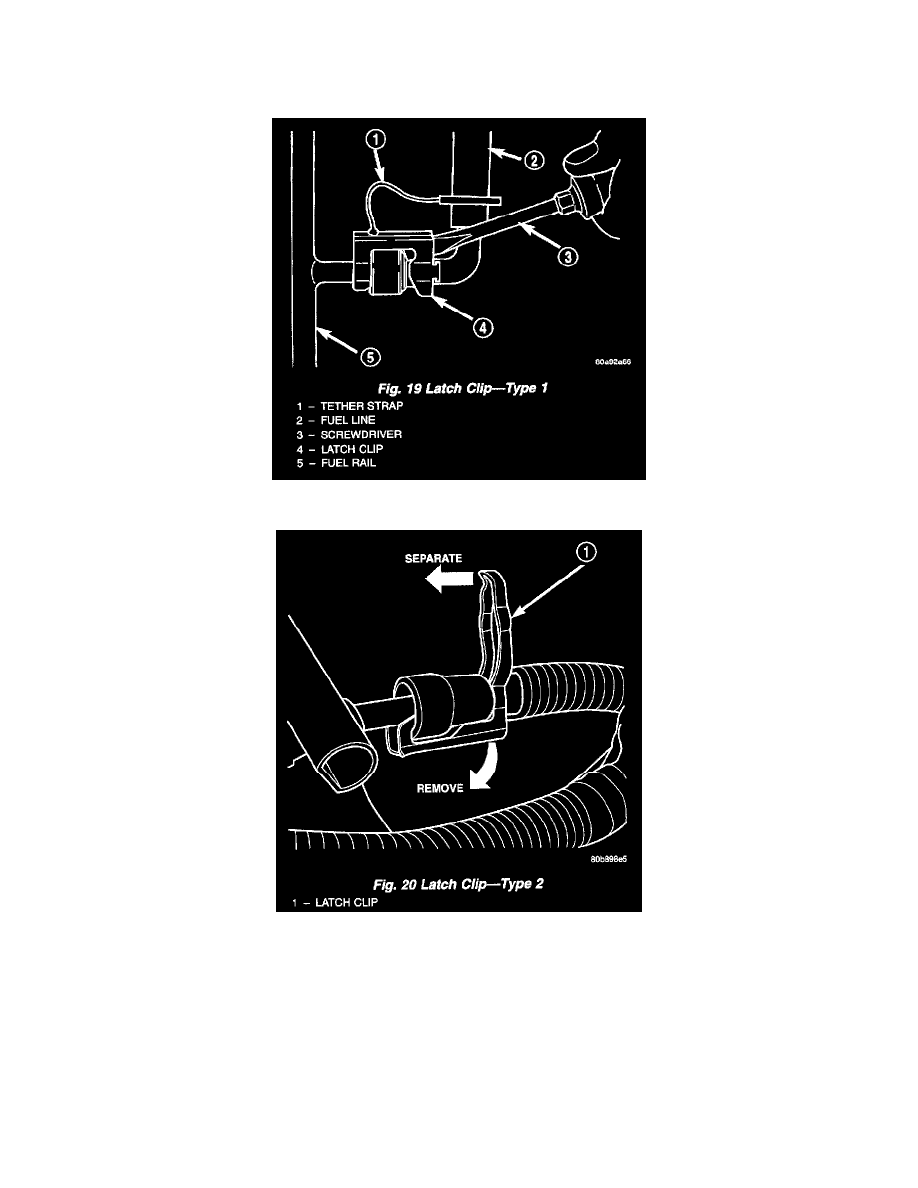

Fig. 19 Latch Clip - Type 1
Fig. 20 Latch Clip - Type 2
7. Latch Clips: Depending on vehicle model and engine, 2 different types of safety latch clips are used (Fig. 19) or (Fig. 20). Type-1 is tethered to
fuel line and type-2 is not. A special tool will be necessary to disconnect fuel line after latch clip is removed. The latch clip may be used on certain
fuel line/fuel rail connection, or to join fuel lines together.
a. Type 1: Pry up on latch clip with a screwdriver (Fig. 19).
b. Type 2: Separate and unlatch 2 small arms on end of clip and swing away from fuel line (Fig. 20) .
c. Slide latch clip toward fuel rail while lifting with screwdriver.
