RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)
Rollover Valve: Service and Repair
REMOVAL
WARNING: THE FUEL SYSTEM IS UNDER A CONSTANT PRESSURE (EVEN WITH THE ENGINE OFF). BEFORE SERVICING
THE ROLLOVER VALVES FUEL SYSTEM PRESSURE MUST BE RELEASED (GASOLINE POWERED ENGINES ONLY).

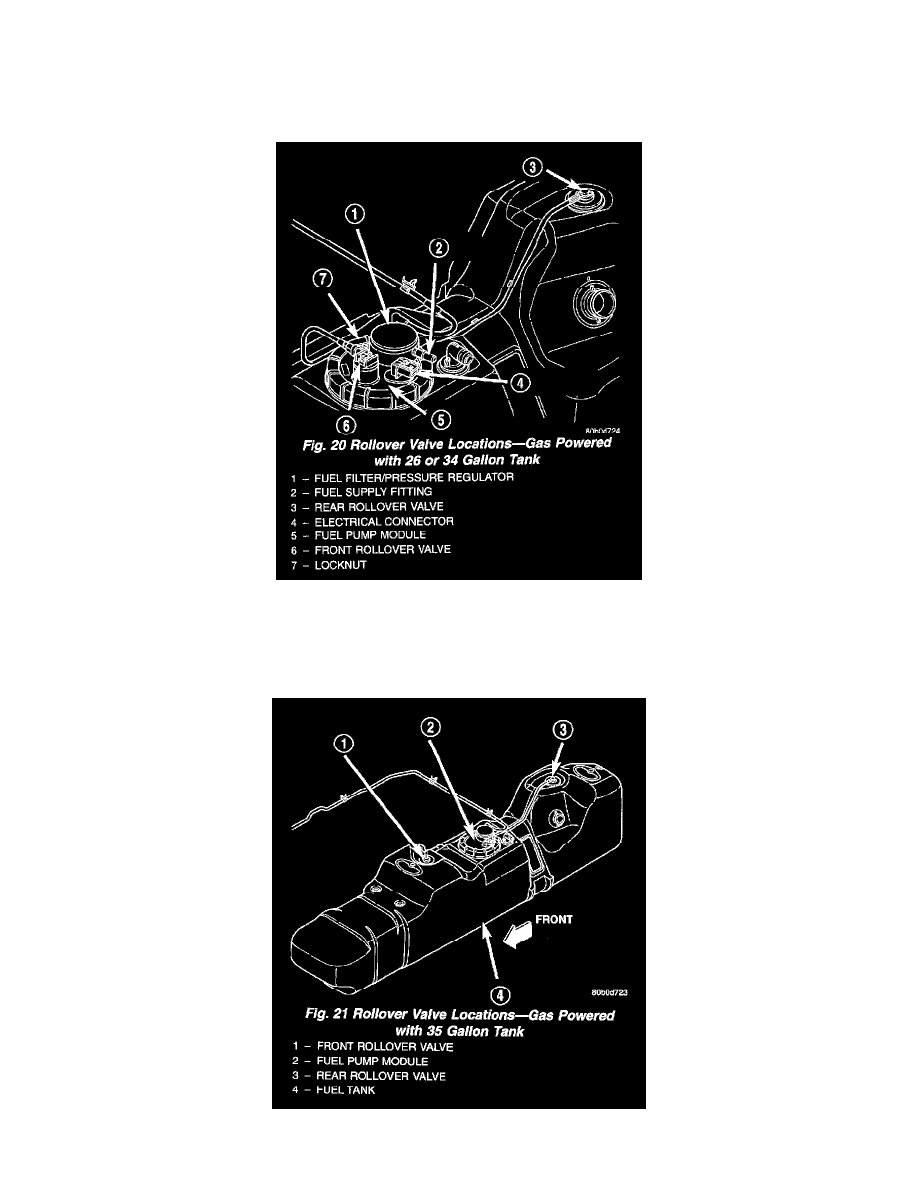

Fig. 20 Rollover Valve Locations - Gas Powered With 26 Or 34 Gallon Tank
If equipped with a 26 or 34 gallon fuel tank, two rollover valves are used. One of the valves is permanently mounted to top of fuel tank (Fig. 20). If
replacement of this particular valve is necessary, fuel tank must be replaced. The other rollover valve is located on top of fuel pump module (Fig. 20).
This valve may be serviced separately. Refer to following steps for procedures.
Fig. 21 Rollover Valve Locations - Gas Powered With 35 Gallon Tank
