RAM 3500 Truck 2WD V8-5.9L VIN Z LDC (1999)

Page 1
background image

Evaporator Core: Locations

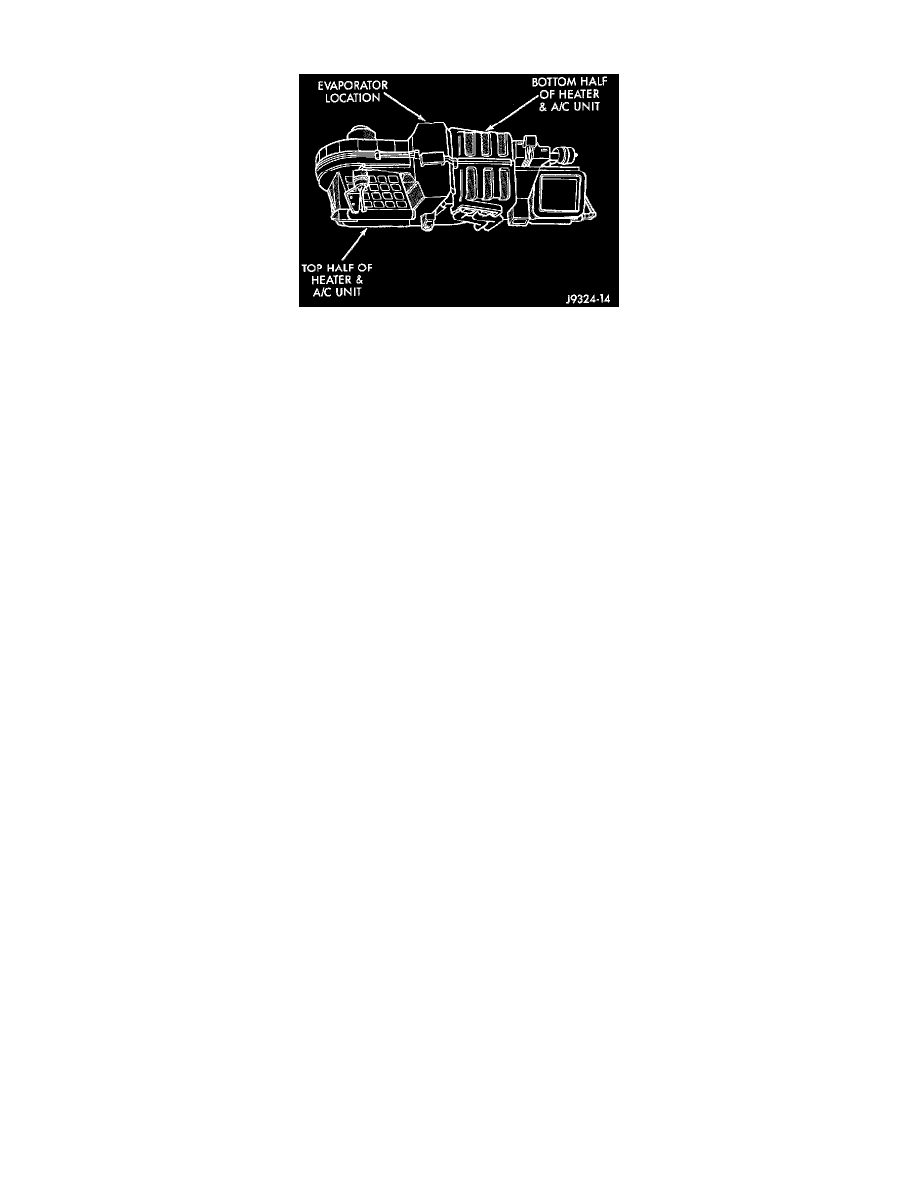

Evaporator Coil Location In Heater-A/C Housing (Upside Down)

The evaporator coil is located in the heater-A/C housing, under the instrument panel.
