RAM 3500 Truck 2WD V8-5.9L VIN Z LDC (1999)
Drive Belt: Service and Repair
NOTE: The belt routing schematics are published from the latest information available at the time of publication. If anything differs between these
schematics and the Belt Routing Label, use the schematics on Belt Routing Label. This label is located in the engine compartment.
CAUTION: Do not attempt to check belt tension with a belt tension gauge on vehicles equipped with an automatic belt tensioner.
REMOVAL
Belt Tensioner-3.9L V-6 Or 5.2/5.9L V-8 LDC-Gas Engines
Drive belts on these engines are equipped with a spring loaded automatic belt tensioner. This belt tensioner will be used on all belt configurations,
such as with or without power steering or air conditioning. For more information, refer to Drive Belt Tensioner.

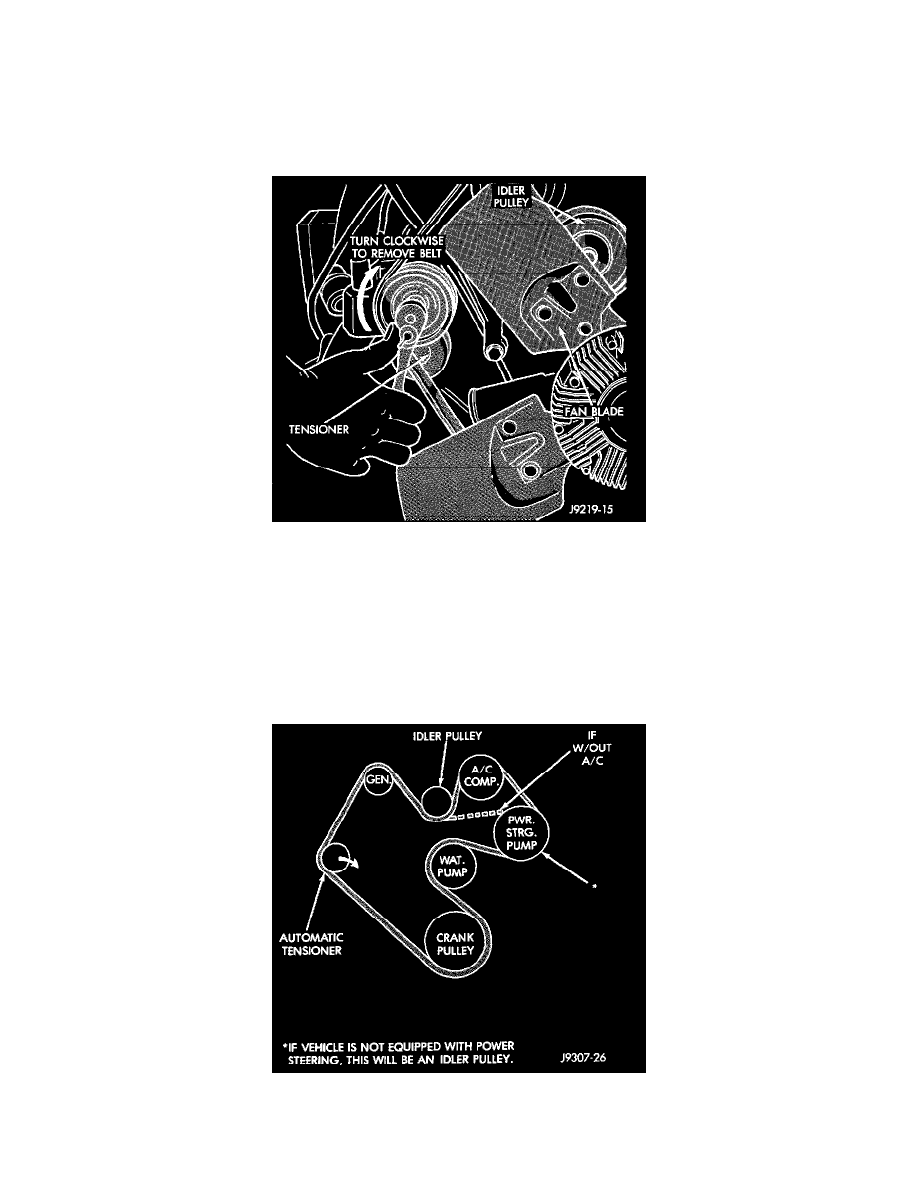

1. Attach a socket/wrench to pulley mounting bolt of automatic tensioner.
2. Rotate tensioner assembly clockwise (as viewed from front) until tension has been relieved from belt.
3. Remove belt from idler pulley first.
4. Remove belt from vehicle.
INSTALLATION
Belt Routing-3.9L V-6 Or 5.2/5.9L V-8 LDC-Gas Engines
CAUTION: When installing the accessory drive belt, the belt must be routed correctly. If not, engine may overheat due to water pump rotating in
