RAM 3500 Truck 2WD V8-5.9L VIN Z LDC (1999)

Page 1
background image

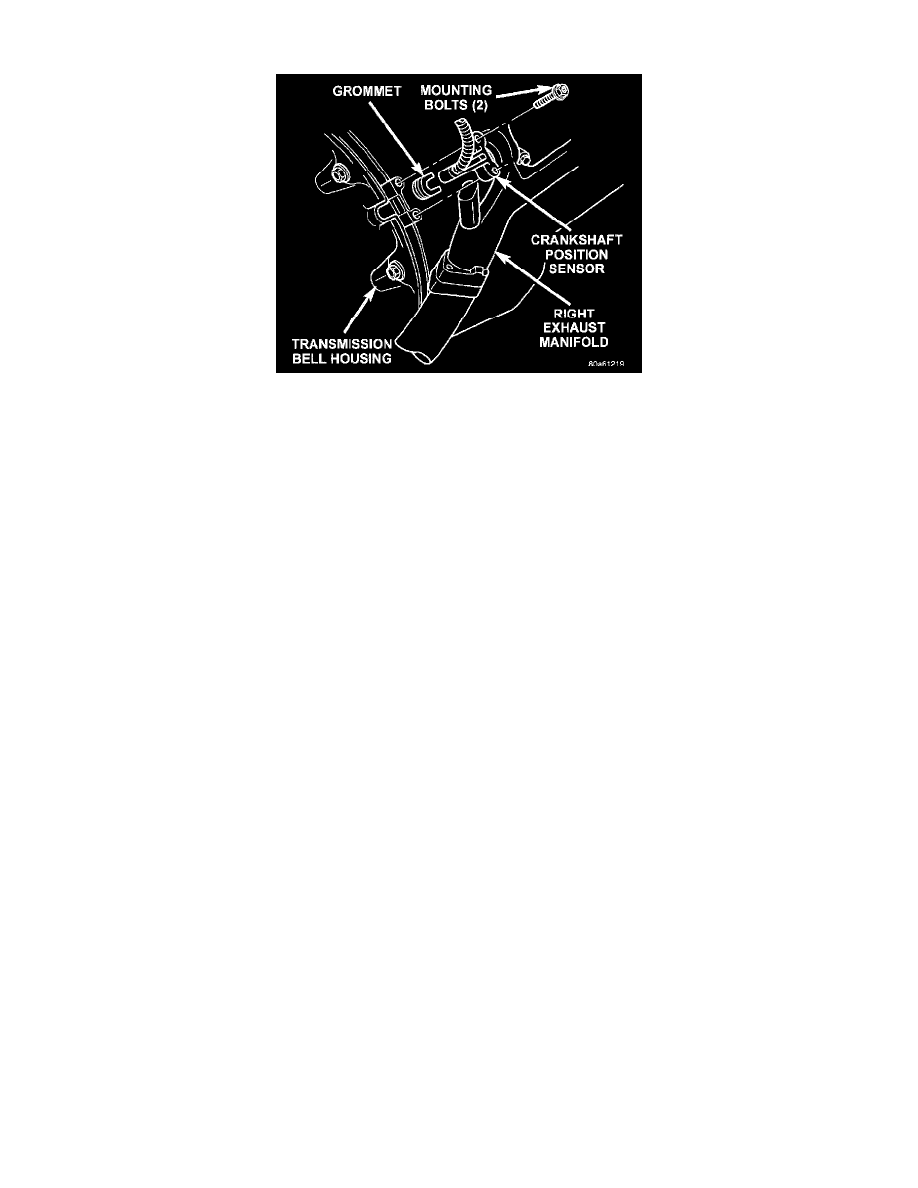

Crankshaft Position Sensor: Locations

Crankshaft Position Sensor (Typical)

The CKP sensor is bolted to the cylinder block near the rear of the right cylinder head.
