RAM 3500 Truck 2WD V8-5.9L VIN Z LDC (1999)

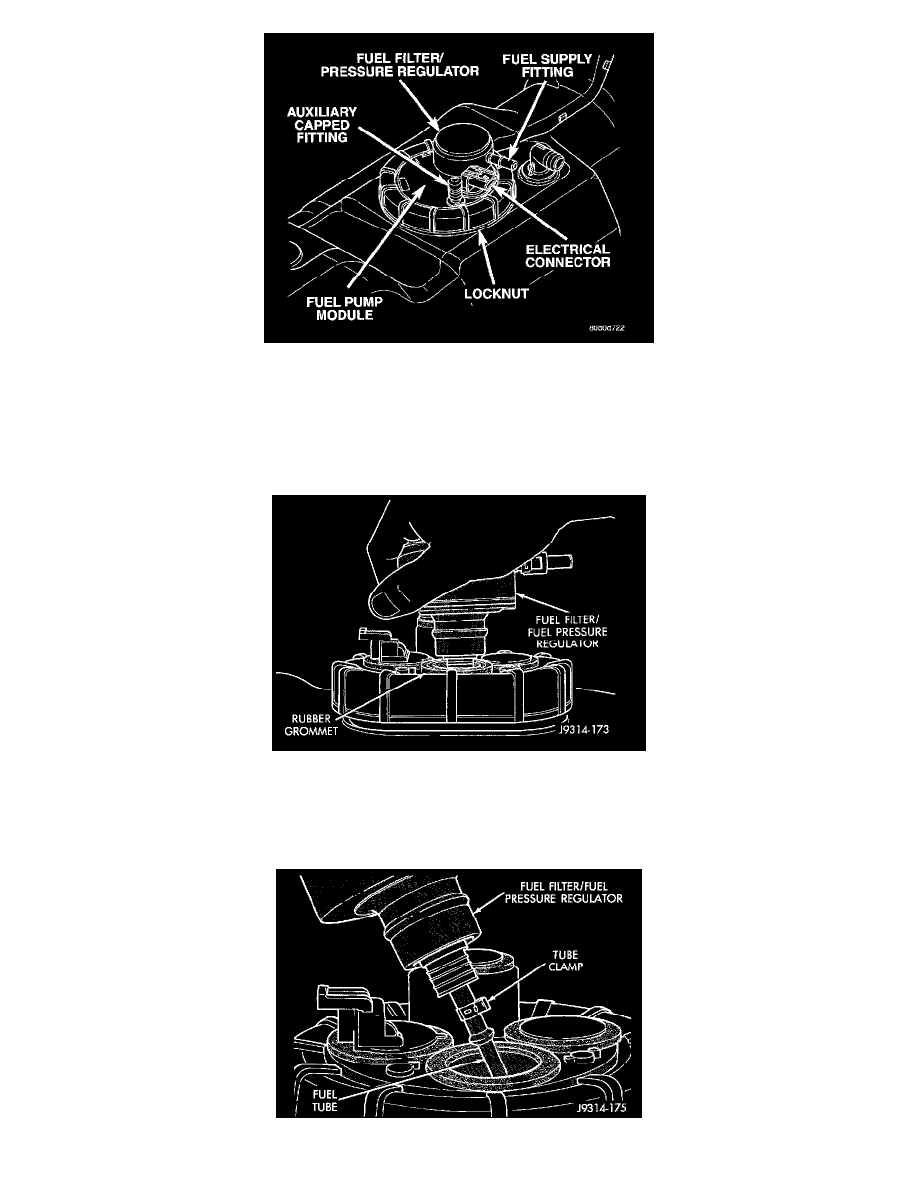

Filter/Regulator Location - With 35 Gallon Fuel Tank
The fuel filter/fuel pressure regulator is located at top of fuel pump module.
Fuel pump module removal is not necessary.
1. Drain fuel tank and remove tank. Refer to Fuel Tank Removal/Installation
Filter/Regulator Removal And Installation - Typical
2. The fuel filter/regulator is pressed into a rubber grommet. Remove by twisting and pulling straight up.
CAUTION: Do not pull filter/regulator more than three inches from fuel pump module. Damage to coiled fuel tube (line) may result.
