RAM 3500 Truck 2WD V8-5.9L VIN Z LDC (1999)

Page 1
background image

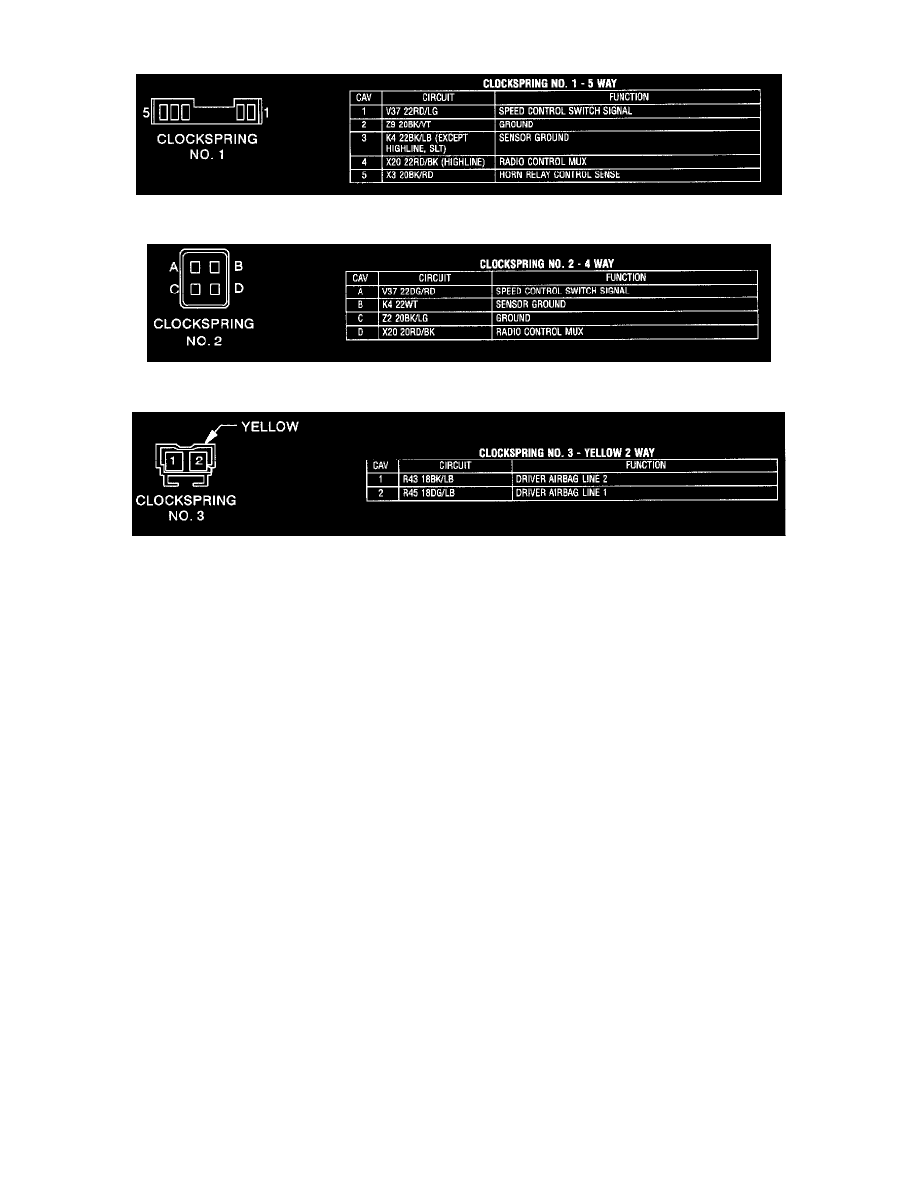

Clockspring Assembly / Spiral Cable: Connector Views

Clockspring No. 1 - 5 Way

Clockspring No. 2 - 4 Way

Clockspring No. 3 - Yellow 2 Way
