RAM 3500 Truck 2WD V8-5.9L VIN Z LDC (1999)
Installation

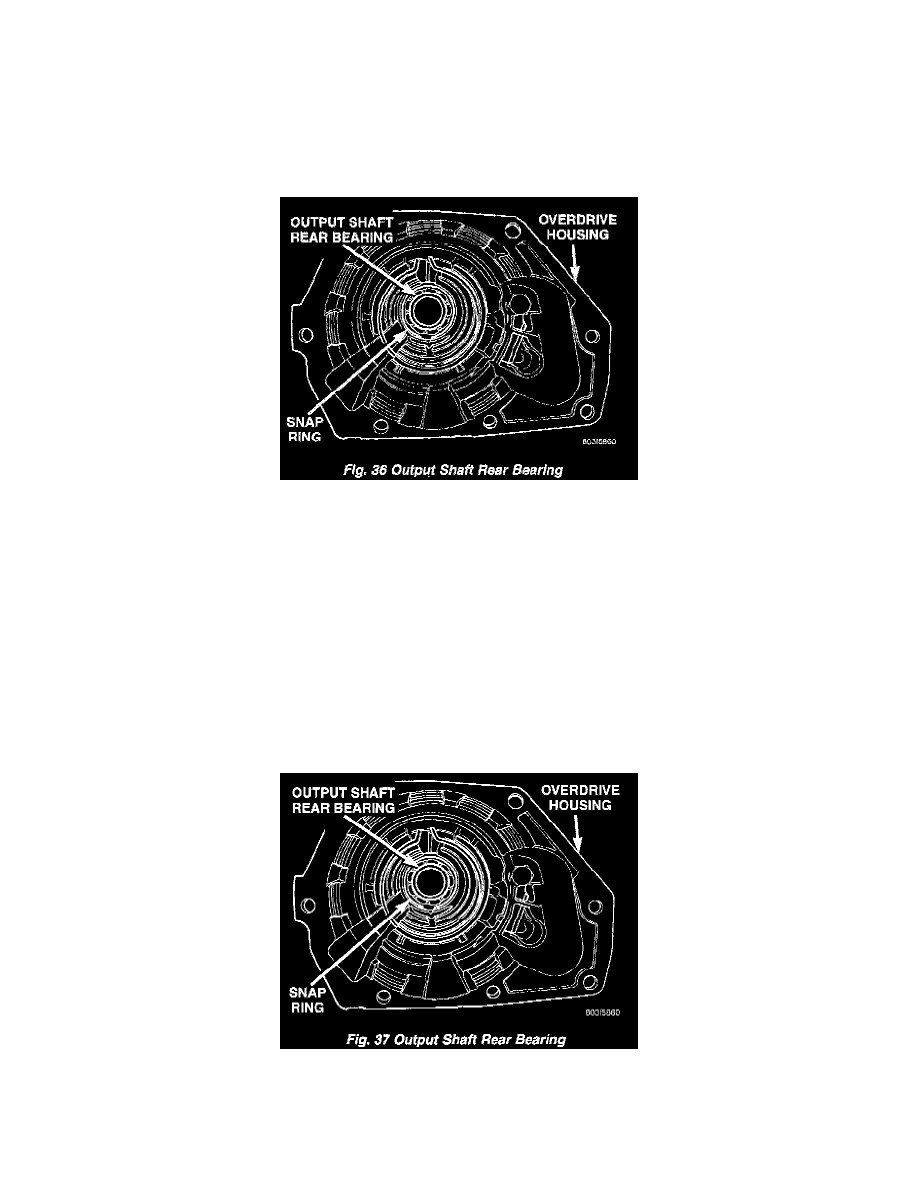

1. Place replacement bearing in position in housing.
2. Using a suitable driver, drive bearing into housing until the snap ring groove is visible.
3. Install snap ring to hold bearing into housing.
4. Install overdrive geartrain into housing.
5. Install overdrive unit in vehicle.
42RE (A500) 4-Speed
Removal
1. Remove overdrive unit from the vehicle.
2. Remove overdrive geartrain from housing.

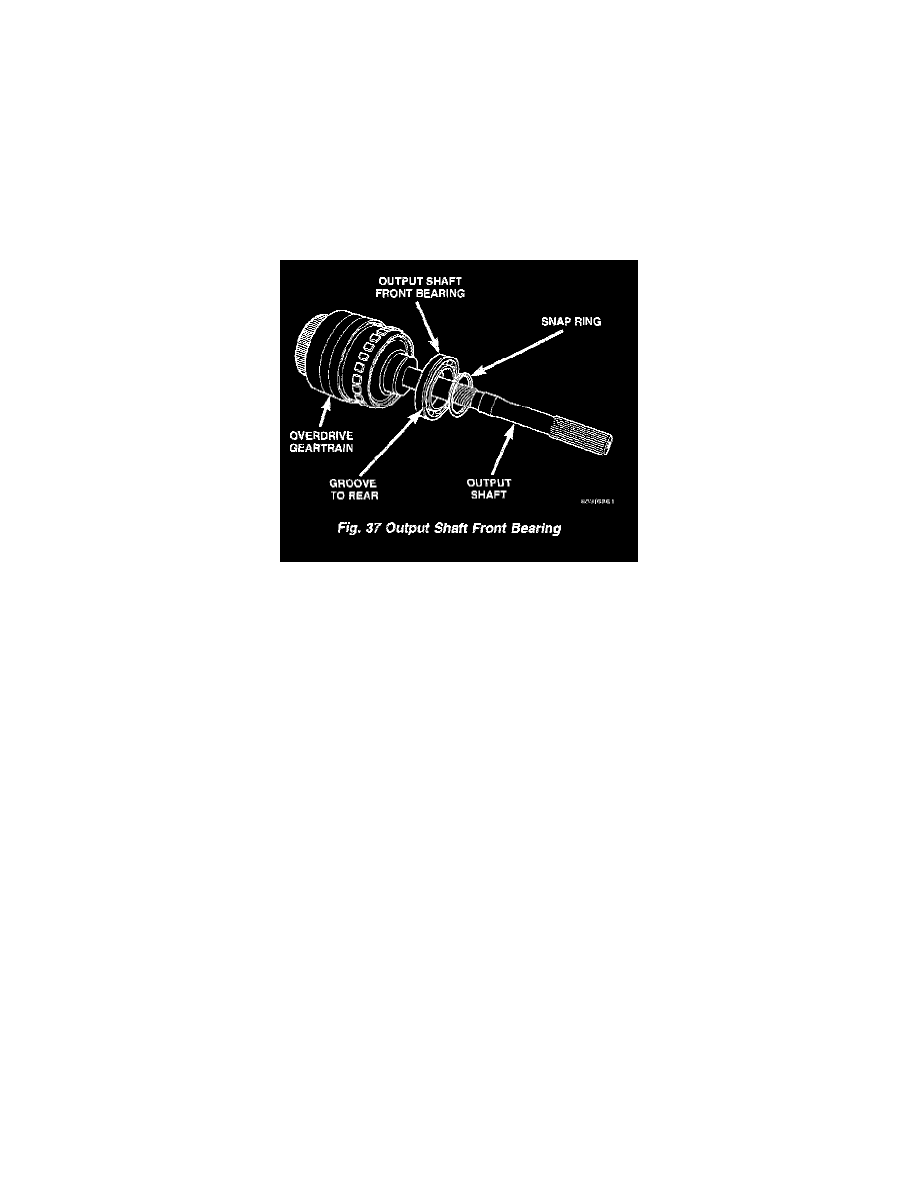

Fig. 37
3. Remove snap ring holding output shaft front bearing to overdrive geartrain (Fig. 37).
4. Pull bearing from output shaft.
Installation
1. Place replacement bearing in position on geartrain with locating retainer groove toward the rear.
2. Push bearing onto shaft until the snap ring groove is visible.
3. Install snap ring to hold bearing onto output shaft (Fig. 37).
4. Install overdrive geartrain into housing.
5. Install overdrive unit in vehicle.
46/47RE (A518/A618) 4-Speed
Removal
1. Remove overdrive unit from the vehicle.
2. Remove overdrive geartrain from housing.
