Overdrive Solenoid: Service and Repair
Removal

REMOVAL

NOTE: If the Transmission Solenoid/TRS Assembly is being replaced, the Quick Learn Procedure must be performed.

1.   Remove the valve body from the transmission.

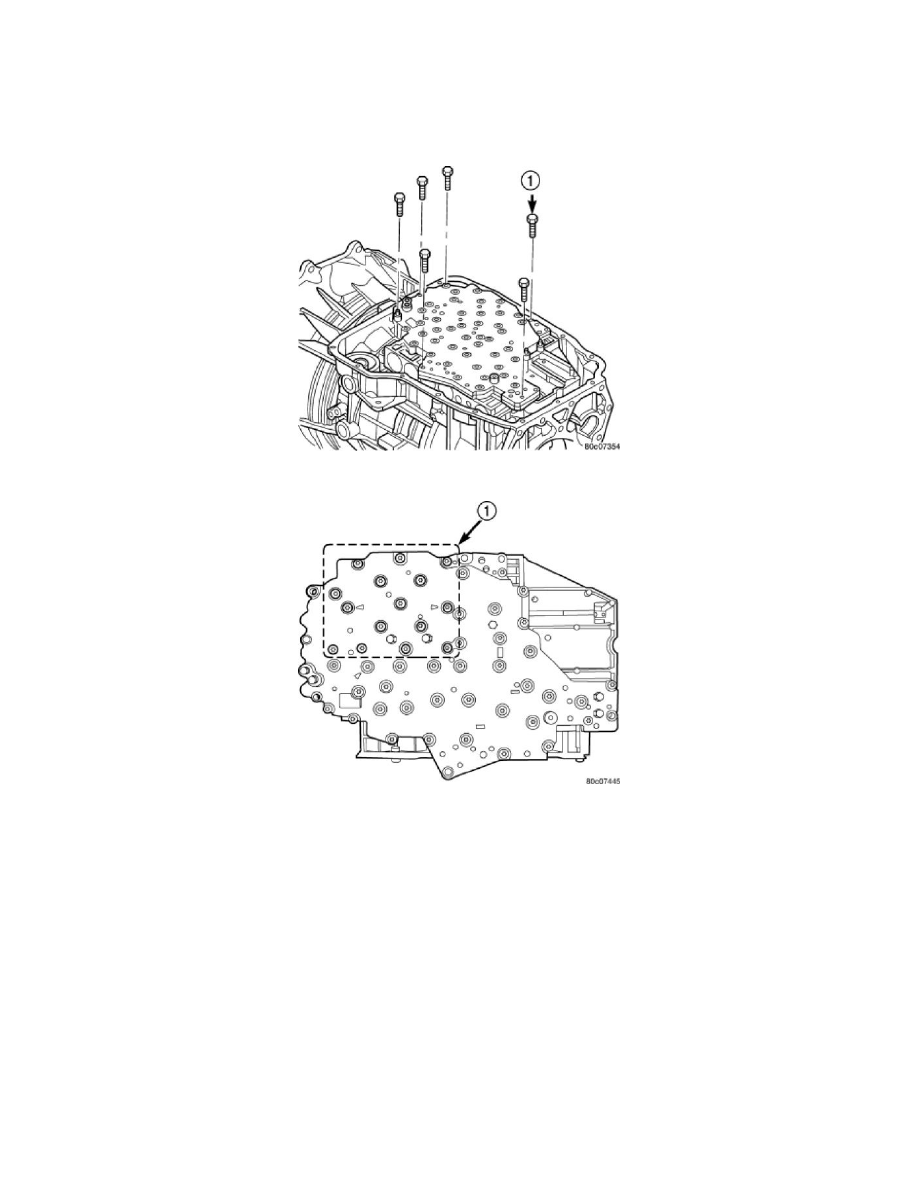

2.   Remove the bolts (1) holding the transmission solenoid/TRS assembly onto the valve body.
3.   Separate the transmission solenoid/TRS assembly from the valve body.
