Sprinter 3500 L5-2.7L DSL Turbo (2004)
Rear Door Latch: Service and Repair
Service Manual
LATCH
REMOVAL
1. Disconnect and isolate battery negative cable.
2. Remove right side trim panel.

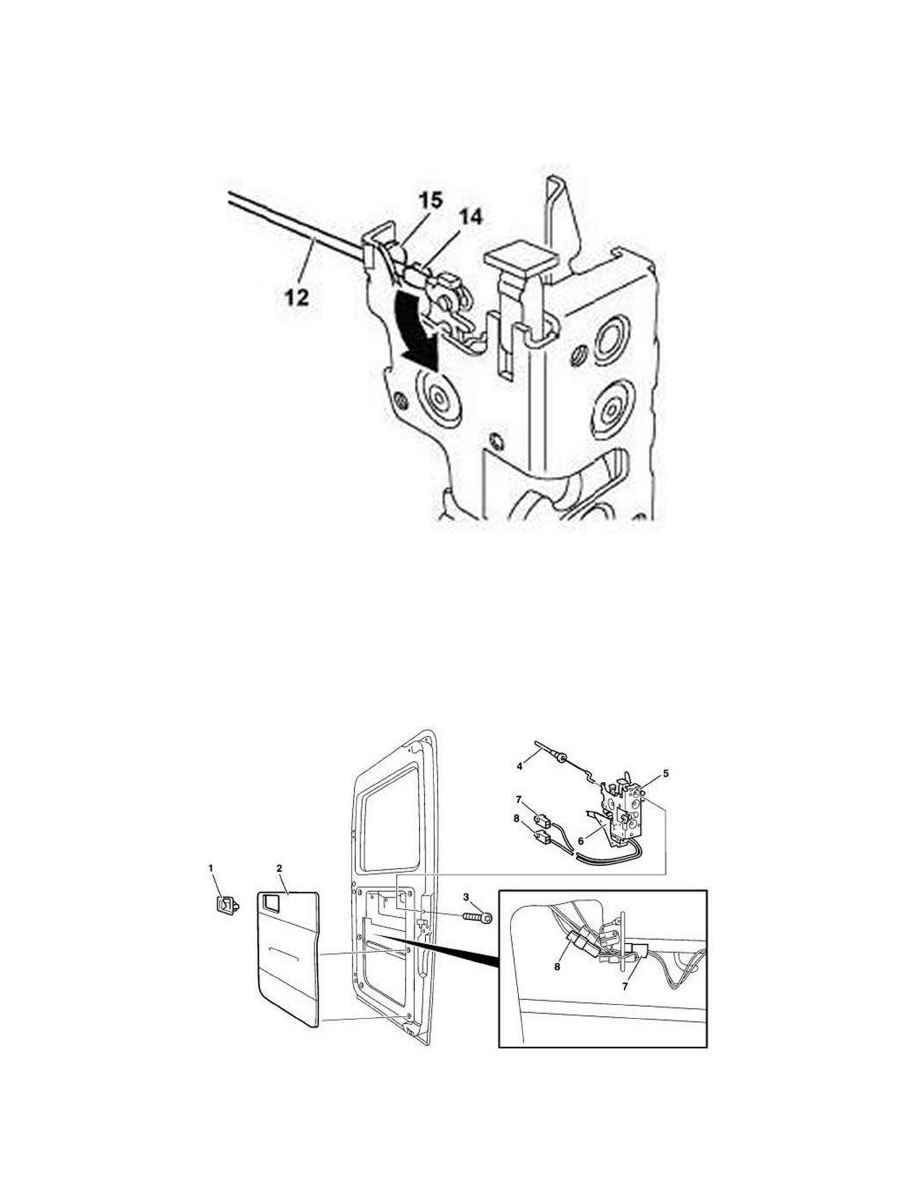

Fig. 20
3. Disconnect lock rod. (Fig. 20)
4. Remove the screws and pull out latch from door.
5. Disconnect cable and electrical connectors.
INSTALLATION
1. Connect electrical connectors and cable to latch assembly.
2. Install latch in door and install screws.
3. Connect lock rod.
4. Install right side trim panel.
5. Connect battery negative cable.
