Center High Mounted Stop Lamp: Service and Repair
Removal and Installation Steps

Vehicles With Rear Spoiler

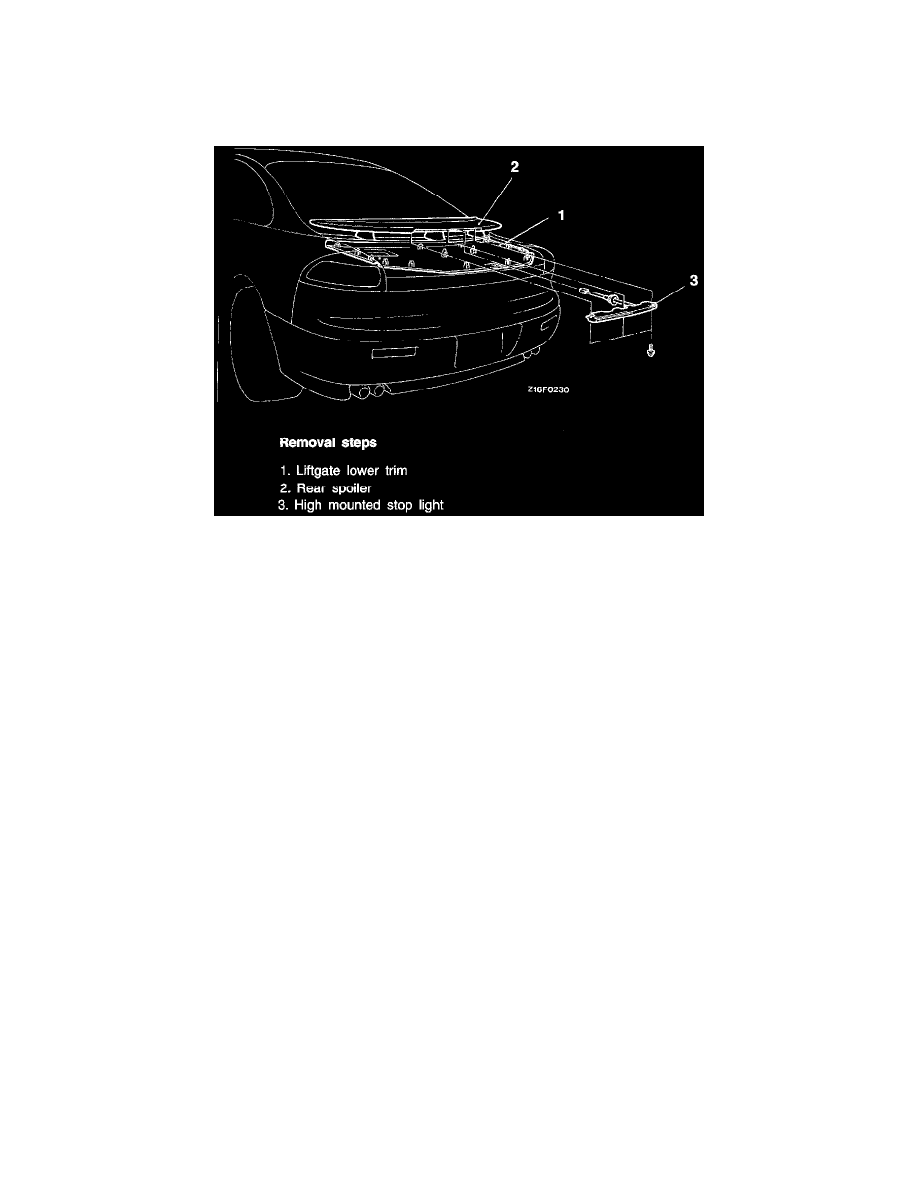

High Mounted Stop Light - Removal And Installation

REMOVE

1. Liftgate lower trim
2. Rear spoiler
3. High mounted stop light

INSTALL

1. High mounted stop light
2. Rear spoiler
3. Liftgate lower trim

Vehicles Without Rear Spoiler
