Timing Belt: Service and Repair

Replace timing belt every 60,000 miles or every five years to prevent cylinder head, valve train or piston damage.

1.

Remove lefthand front and side undercover.

2.

Disconnect and remove cruise control pump and link assembly.

3.

Raise and support engine assembly to take weight off engine mounts.

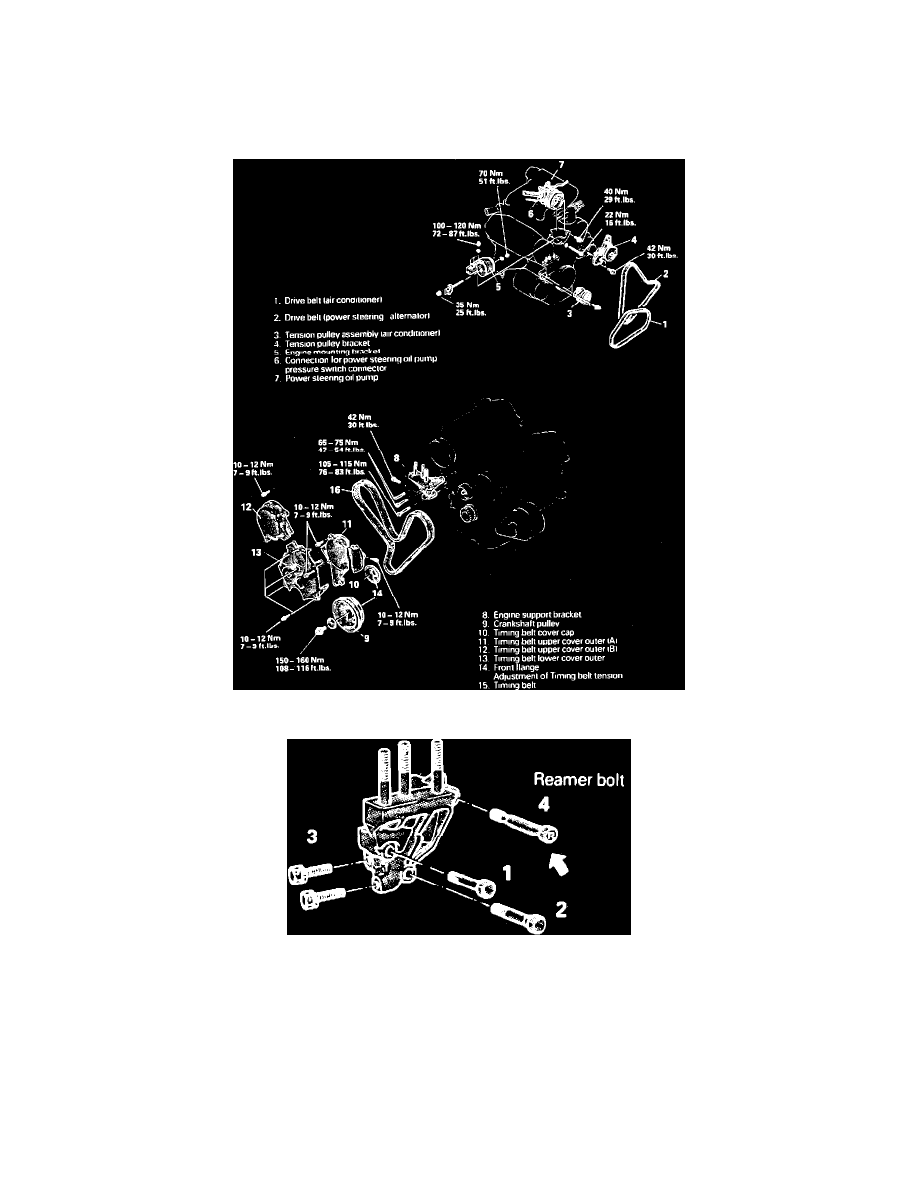

Fig. 34  Timing Belt Replacement. SOHC

Fig. 35  Removing Engine Support Bracket. SOHC
