Stratus L4-2.0L VIN C (1997)
Power Door Lock Actuator: Service and Repair
REMOVAL
1. Remove door trim panel.

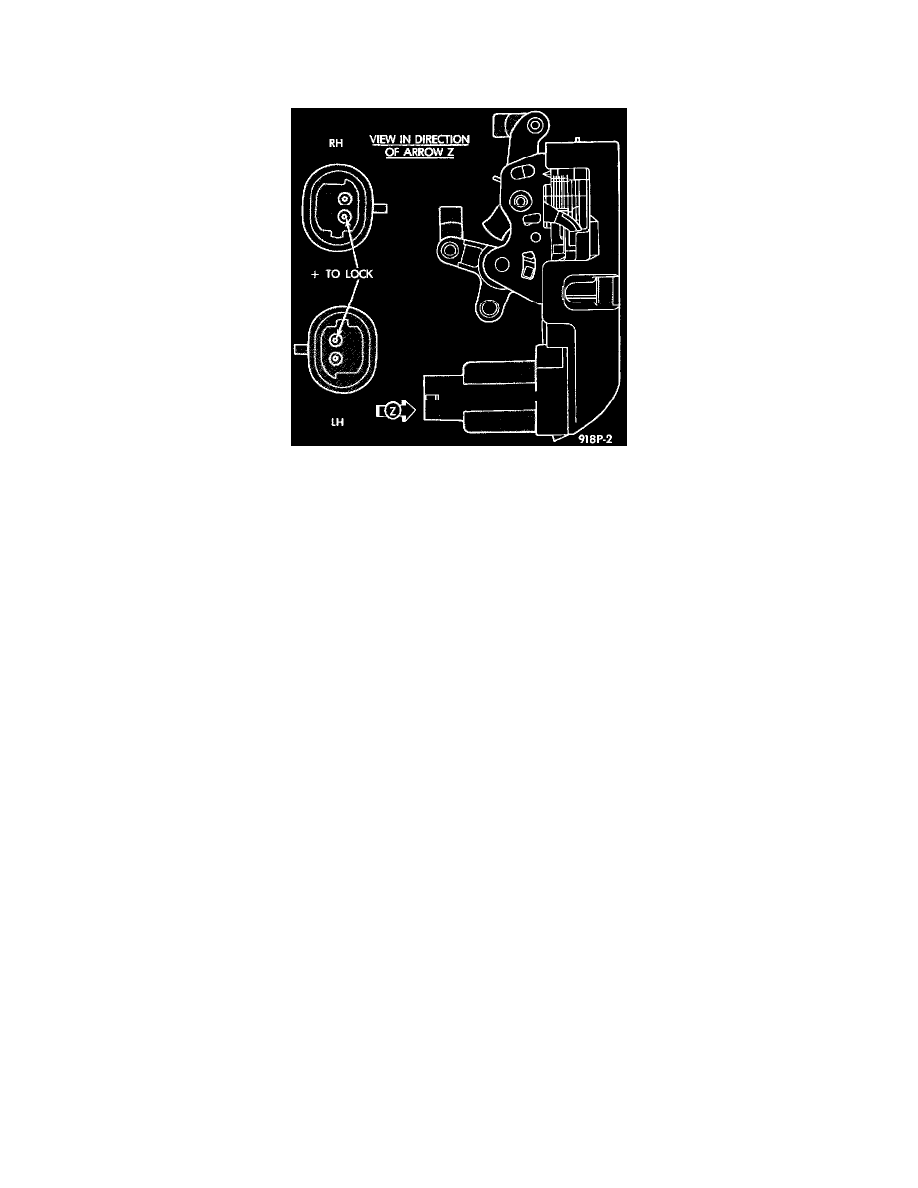

Front Door Lock Motor
2. Disconnect motor/latch wire connector.
3. Disconnect linkage from:
-
Outside door handle
-
Inside door handle
-
Locking knobs
-
Key cylinder
4. Remove motor/latch assembly attaching screws and remove assembly.
INSTALLATION
-
For installation, reverse the above procedures.
