Stratus L4-2.0L VIN C (1997)
Clutch Cable: Description and Operation
GENERAL INFORMATION

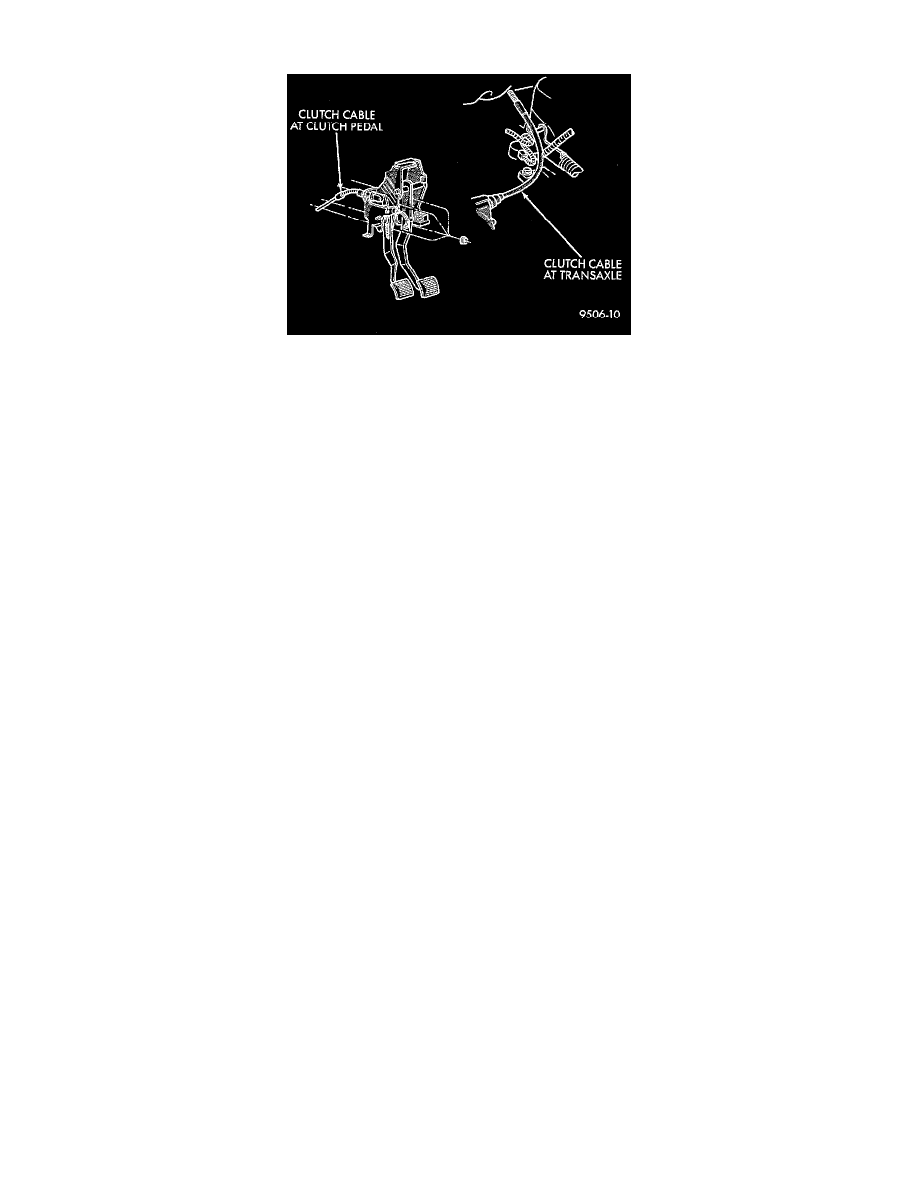

The clutch cable has a unique self-adjuster mechanism built into the cable which compensates for clutch disc wear. The cable requires no
maintenance or lubrication. There are no serviceable components on the cable assembly.
DESCRIPTION
The manual transaxle clutch release system has a unique self-adjusting mechanism to compensate for clutch disc wear. This adjuster mechanism is
located within the clutch cable assembly. The preload spring maintains tension on the cable. This tension keeps the clutch release bearing
continuously loaded against the fingers of the clutch cover assembly.
