Viper GTS V10-488 8.0L (1998)

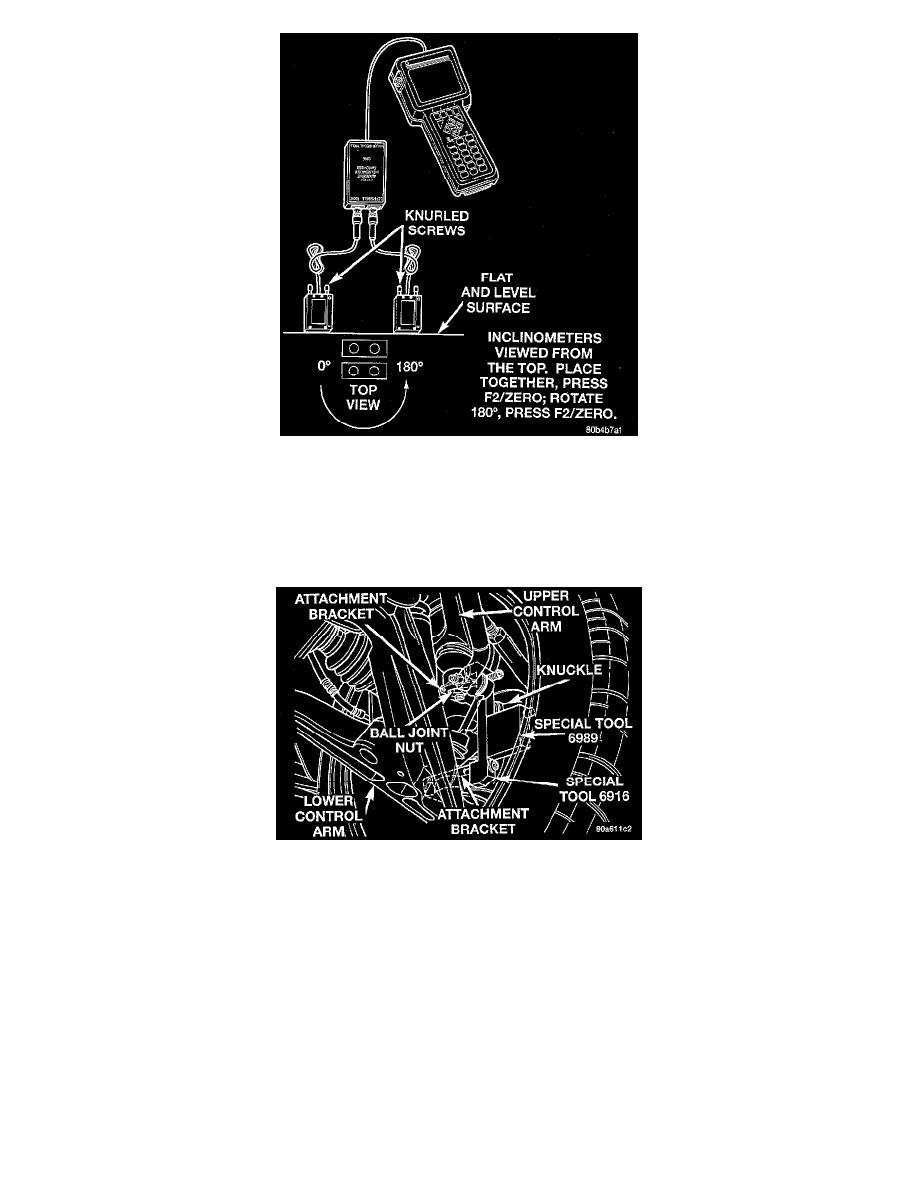

Zero The Inclinometers
9. Zero the inclinometers: Place both inclinometers together on a known flat, level surface, such as the alignment rack, with the knurled ends of the
fastening screws facing upward. Press F2. This zeros the inclinometers in one direction. Rotate the inclinometers 180 degrees in place, then press
F2 again to zero both inclinometers in the other direction. The inclinometers are now ready to be installed on the vehicle.
10. Mount inclinometers to either both rear or both front Caster Angle Fixtures, Special Tool 6916 or 6915. Make sure the inclinometer from the left
side of the switch box is mounted to the left fixture and the inclinometer from the right side of the switch box is mounted to the right fixture.
Rear Caster Angle Fixture Installed On Knuckle
