Viper GTS V10-8.0L VIN E (1999)

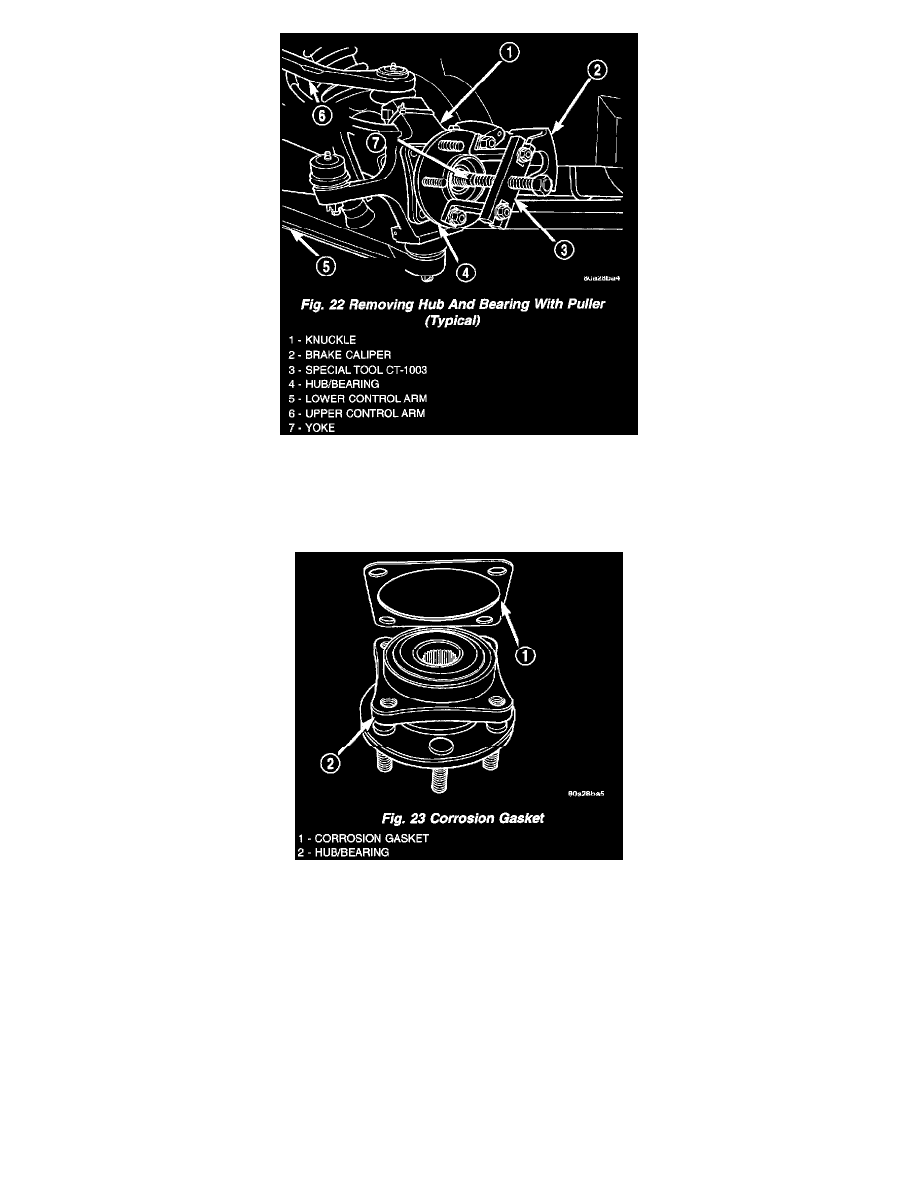

14. The hub/bearing should separate from the yoke and the knuckle by pulling on it by hand. If the hub/bearing will not separate from yoke and
knuckle by hand, use Puller, Special Tool CT-1003, to remove the hub/bearing.
15. Remove the hub/bearing from the knuckle.
INSTALLATION
CAUTION: A corrosion prevention gasket is used between the hub/bearing and the knuckle. The gasket is required to prevent galvanic corrosion
between the hub/bearing and the steering knuckle. The corrosion prevention gasket must be used when installing a hub/bearing in the knuckle.
1. Install a NEW corrosion prevention gasket on the hub/bearing before installing it in the knuckle.
2. Install rear hub/bearing on yoke and rear knuckle. Align holes in hub/bearing and corrosion gasket with the holes in the knuckle.
3. Install the 4 attaching bolts for the rear hub/bearing. Tighten the hub/bearing attaching bolts to a torque of 149 Nm (110 ft. lbs.).
4. Install the washer on the hub/bearing and yoke.
5. Install the hub nut mounting the hub/bearing to the yoke. Tighten the hub nut at this time but do not attempt to torque it.
