Viper SRT-10 V10-8.4L (2008)
Blower Motor: Locations
Component ID:
168
Component :
MOTOR-BLOWER

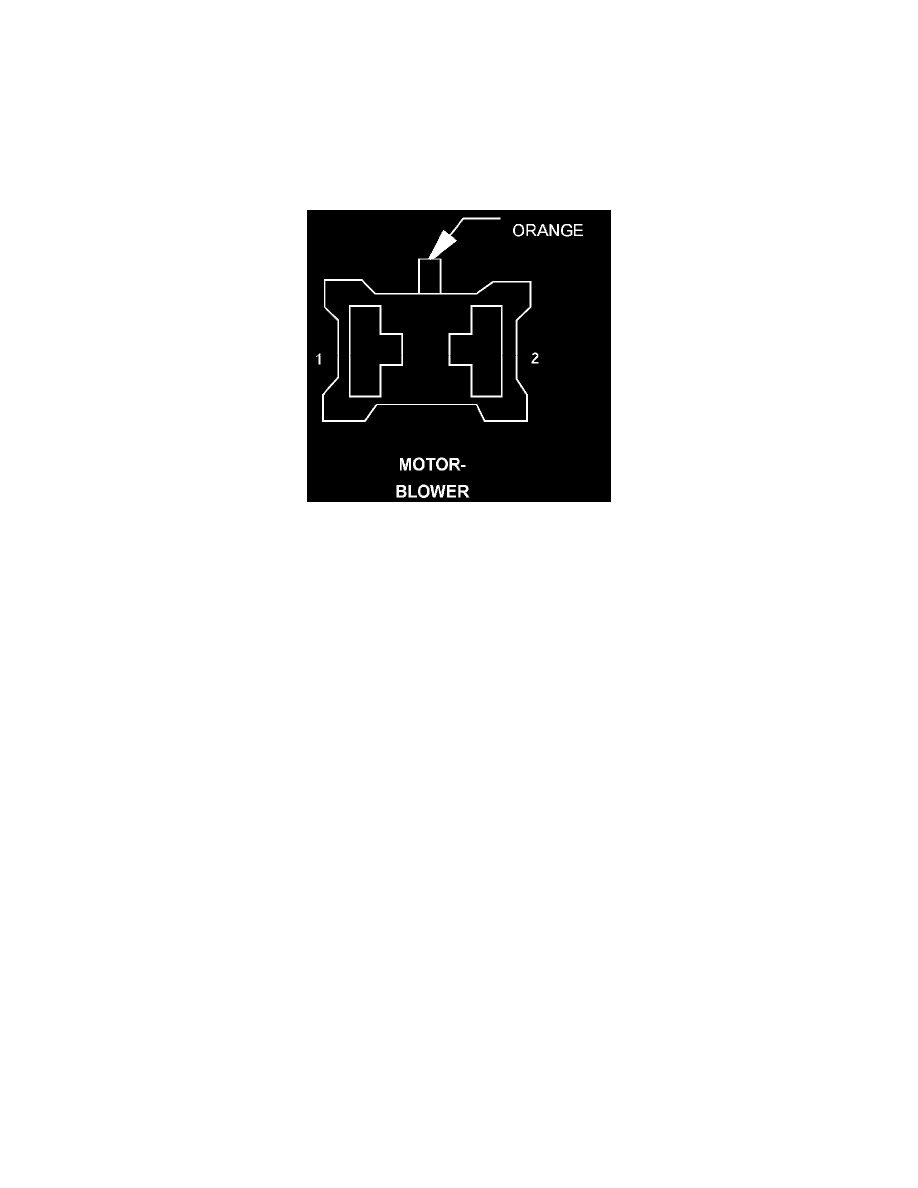

Connector:
Name :
MOTOR-BLOWER
Color :
ORANGE
# of pins :
2
Pin Circuit
Description
1
C7 12DB
BLOWER MOTOR RELAY OUTPUT
2
C75 12DB/GY
BLOWER MOTOR HIGH DRIVER
Component Location - 14
