Viper SRT-10 V10-8.4L (2008)
Antenna Control Module: Service and Repair
Removal
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the Instrument panel See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Instrument Panel -
Removal.

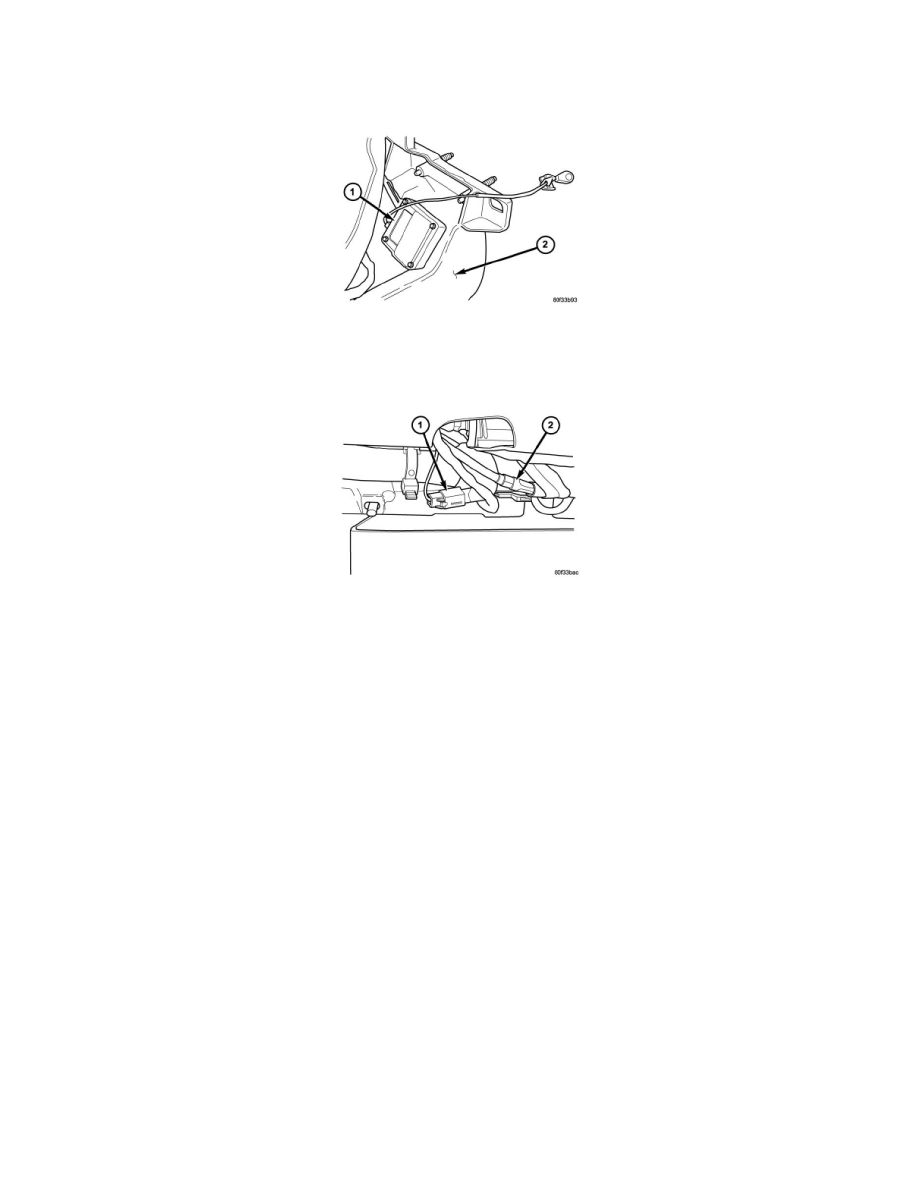

3. Remove mounting fasteners from module.
4. Disconnect antenna module cable and electrical harness connector.
5. Remove antenna module from instrument panel.
