Shift Solenoid: Locations
Solenoid-Skip Shift

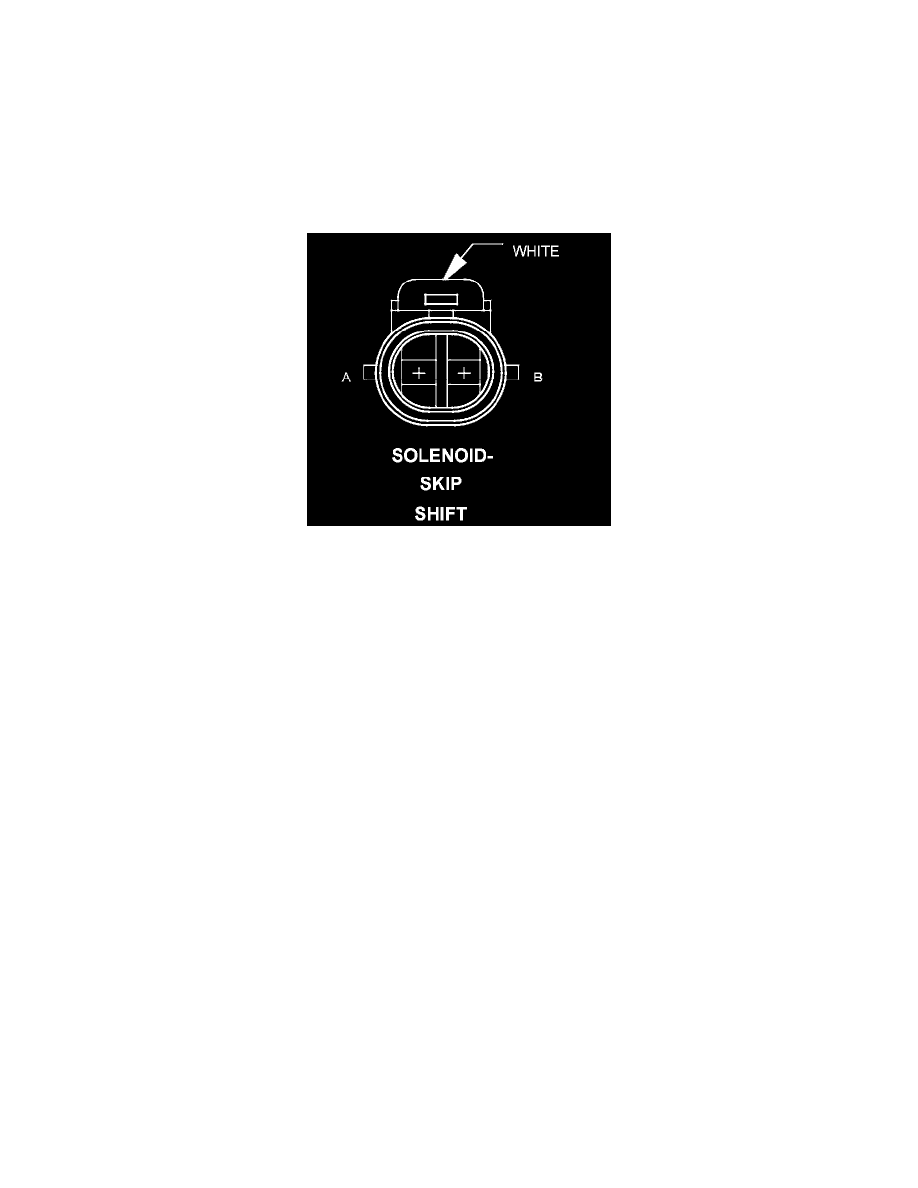

Component ID:

325

Component :

SOLENOID-SKIP SHIFT

Connector:

Name :

SOLENOID-SKIP SHIFT

Color :

WHITE

# of pins :

2

Pin Circuit

Description

1

F343 16PK/BR

ASD RELAY 2 OUTPUT

2

K33 20DB/LG

SKIP SHIFT CONTROL

Component Location - 12
