Summit L4-1795cc 1.8L SOHC (1995)
Fuel Gauge: Testing and Inspection
Fuel Gauge Resistance
With Tachometer
Fuel Gauge Resistance And Engine Coolant Temperature Gauge Resistance

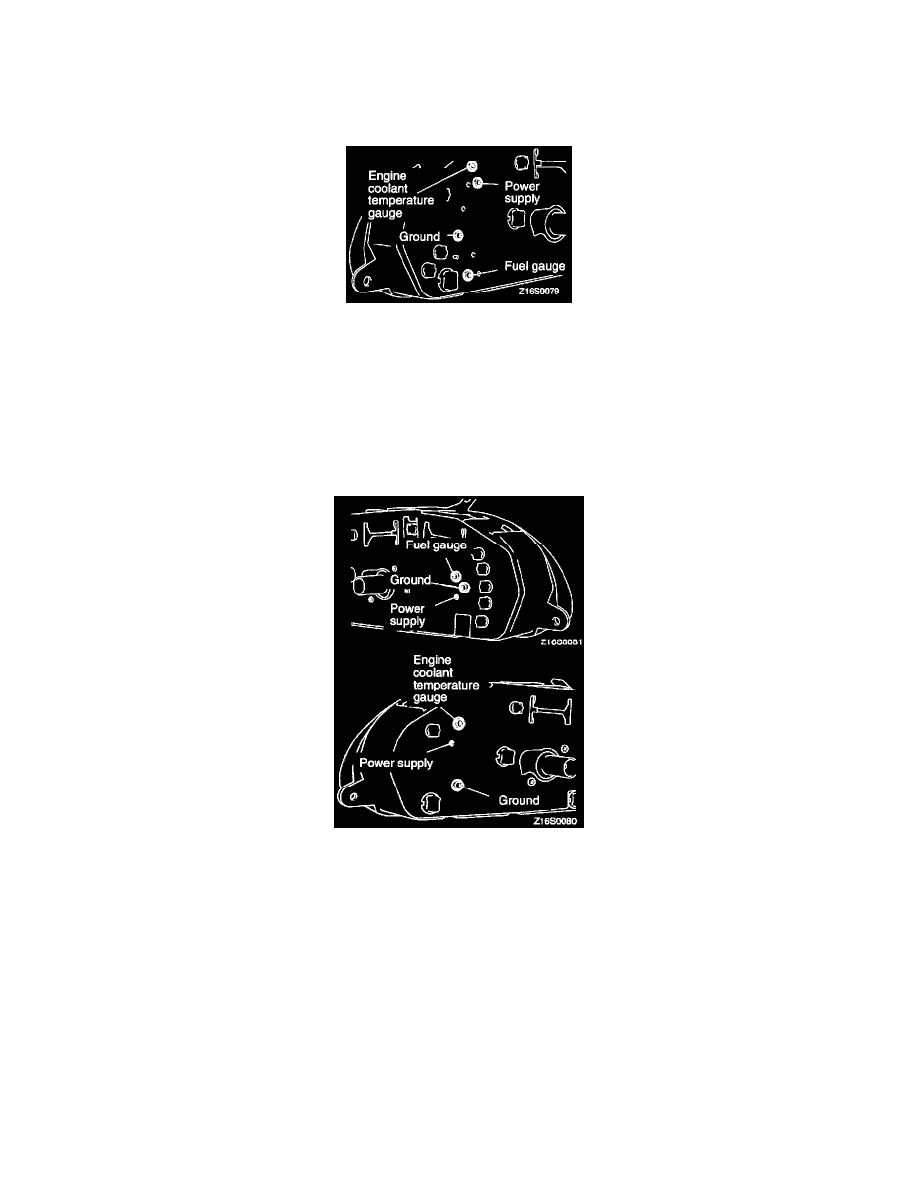

Use an ohmmeter to measure the resistance value between the terminals.
Standard value:
Power supply-Ground: ...............................................................................................................................................................210.6 - 257.4 Ohm
Power supply-Fuel gauge: .............................................................................................................................................................78.3 - 95.7 Ohm
Fuel gauge-Ground: ...................................................................................................................................................................132.3 - 161.7 Ohm
Without Tachometer
Fuel Gauge Resistance And Engine Coolant Temperature Gauge Resistance
1. Remove the power supply tightening screw.
2. Use an ohmmeter to measure the resistance value between the terminals.
CAUTION: When inserting the testing probe into the power supply terminal, be careful not to touch the printed board.
Standard value:
Power supply-Ground: ...............................................................................................................................................................218.7 - 267.3 Ohm
Power supply-Fuel gauge: .............................................................................................................................................................74.7 - 91.3 Ohm
Fuel gauge-Ground: ...................................................................................................................................................................144.0 - 176.0 Ohm
