Talon AWD L4-1997cc 2.0L DOHC Turbo (1991)
![background image](/eagle/talon_awd/l4-1997cc_2.0l_dohc_turbo/Page-65001.png)
Power Mirror Switch: Testing and Inspection

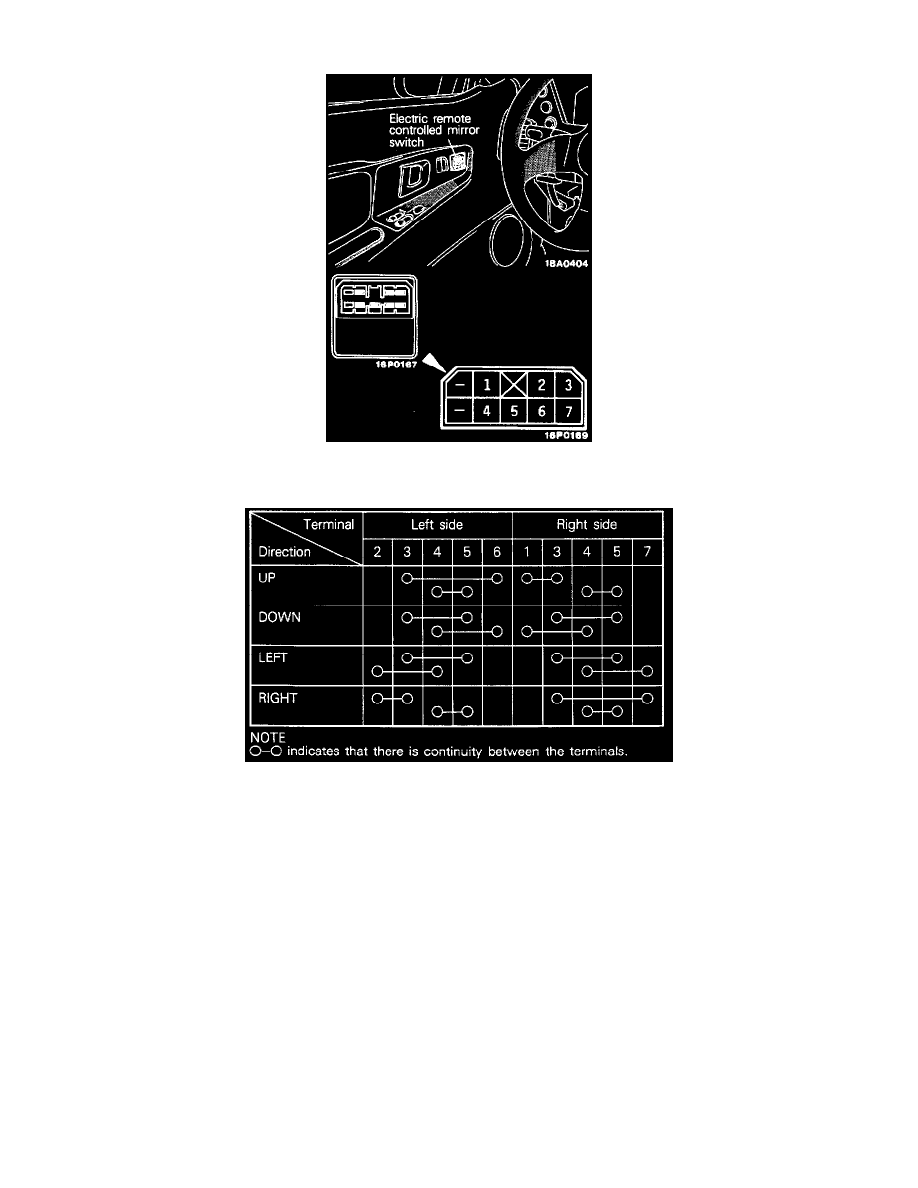

ELECTRIC REMOTE CONTROLLED MIRROR SWITCH INSPECTION
Operate switches and check the continuity between terminals as indicated in the chart below.
Power Mirror Switch: Testing and Inspection
ELECTRIC REMOTE CONTROLLED MIRROR SWITCH INSPECTION
Operate switches and check the continuity between terminals as indicated in the chart below.
