Contour L4-122 2.0L DOHC VIN 3 SFI (1995)
Drive Chain: Service and Repair
DISASSEMBLE

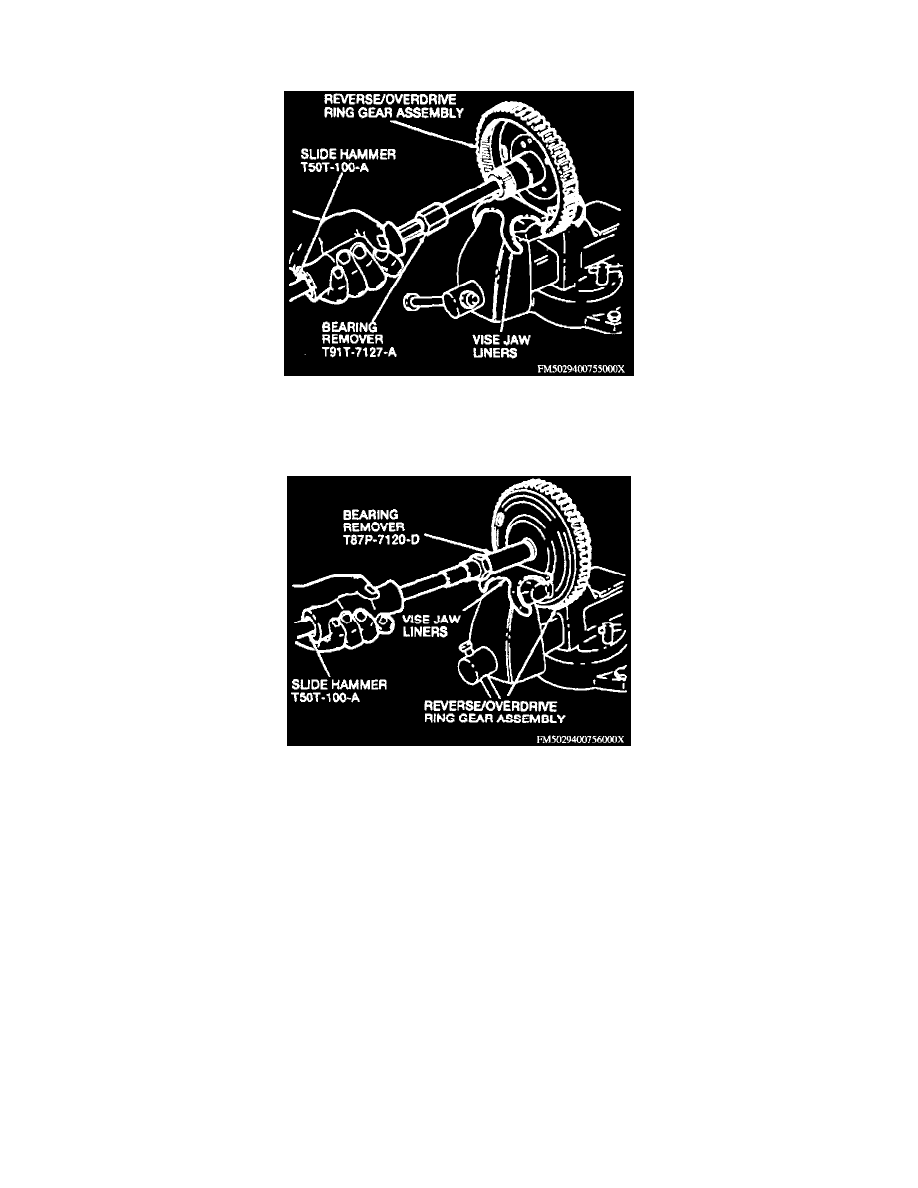

Reverse/Overdrive Ring Gear Bearing Removal
1. Use slide hammer tool No. T50T-100-A, input shaft bearing remover tool No. T91T-7127-A and bearing cup remover tool No. T87P-7120-D or
equivalents to remove reverse/overdrive ring gear bearing assembly.
Stator Support Bearing Removal
2. Use bearing cup remover tool No. T87P-7120-D and impact slide hammer tool No. T50T-100-A or equivalents to remove stator support bearing
assembly.
ASSEMBLE
1. Position reverse/overdrive ring gear bearing assembly on bearing replacer tool No. T94P-77000-K or equivalent, then couple replacer tool with
driver handle tool No. T80T-4000-W or equivalent.
