Contour V6-153 2.5L DOHC (1996)
5. Remove guide pin.
6. Remove caliper locating pin cover, then caliper locating pin.
7. Lift caliper from friction pads and anchor frame assembly.
INSTALLATION

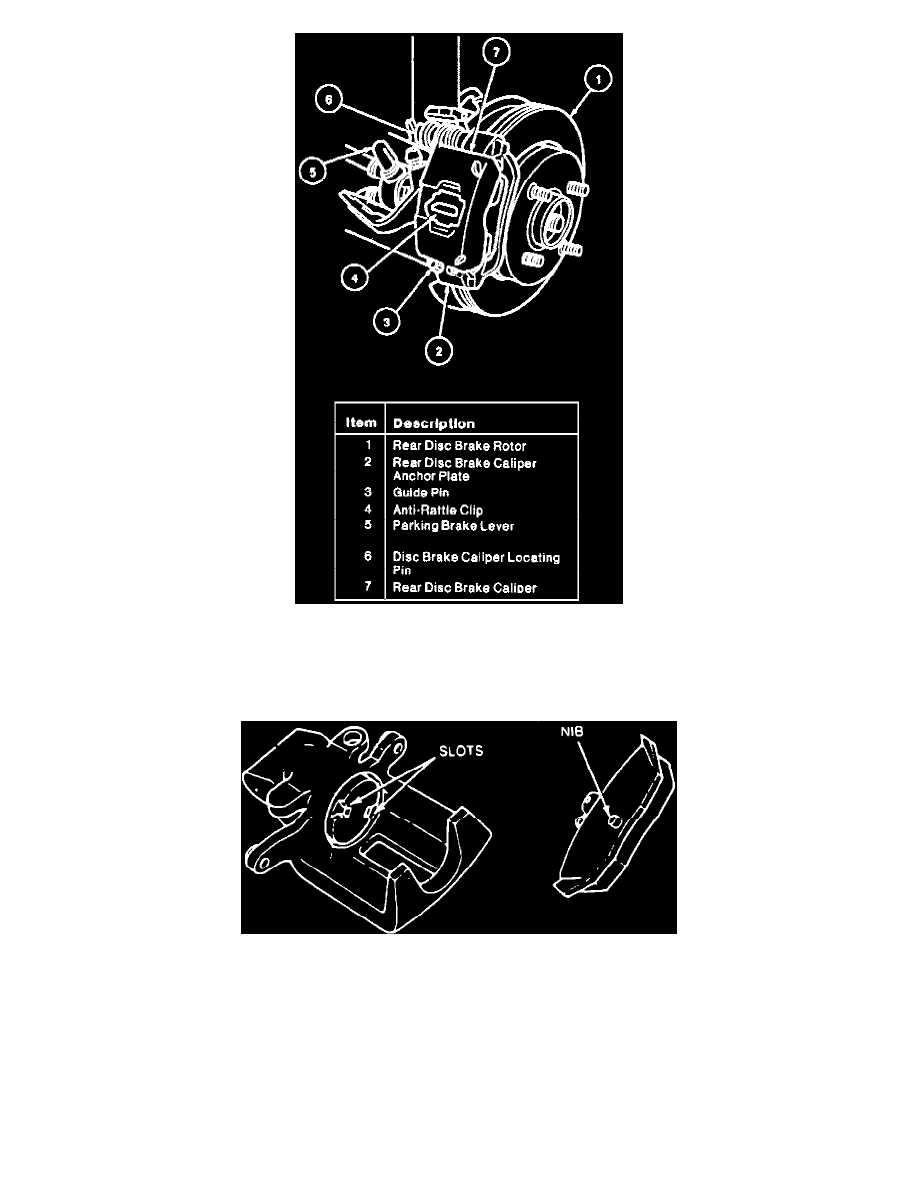

Fig. 14 Positioning Caliper Piston To Brake Pad Nib
1. Using rear caliper piston adjuster T87P-2588-A, or equivalent, position one piston slot so it will engage nib on rear of brake pad.
2. Ensure all locating pin, guide pin, caliper and anchor frame mounting and sliding surfaces are clean and free of residues.
3. Place inner and outer pads into position on anchor frame.
4. Place caliper into position on anchor frame.
5. Apply a suitable thread lock compound to mounting threads of locating pin, then apply a suitable brake lubricant to sliding surface of locating pin.
6. Install locating pin.
7. Install guide pin locking into place with suitable cotter pin.
8. Install parking brake cable.
9. Install brake hose using new sealing washers, then perform brake bleeding procedure.
