Contour V6-153 2.5L DOHC (1996)

Page 2
background image

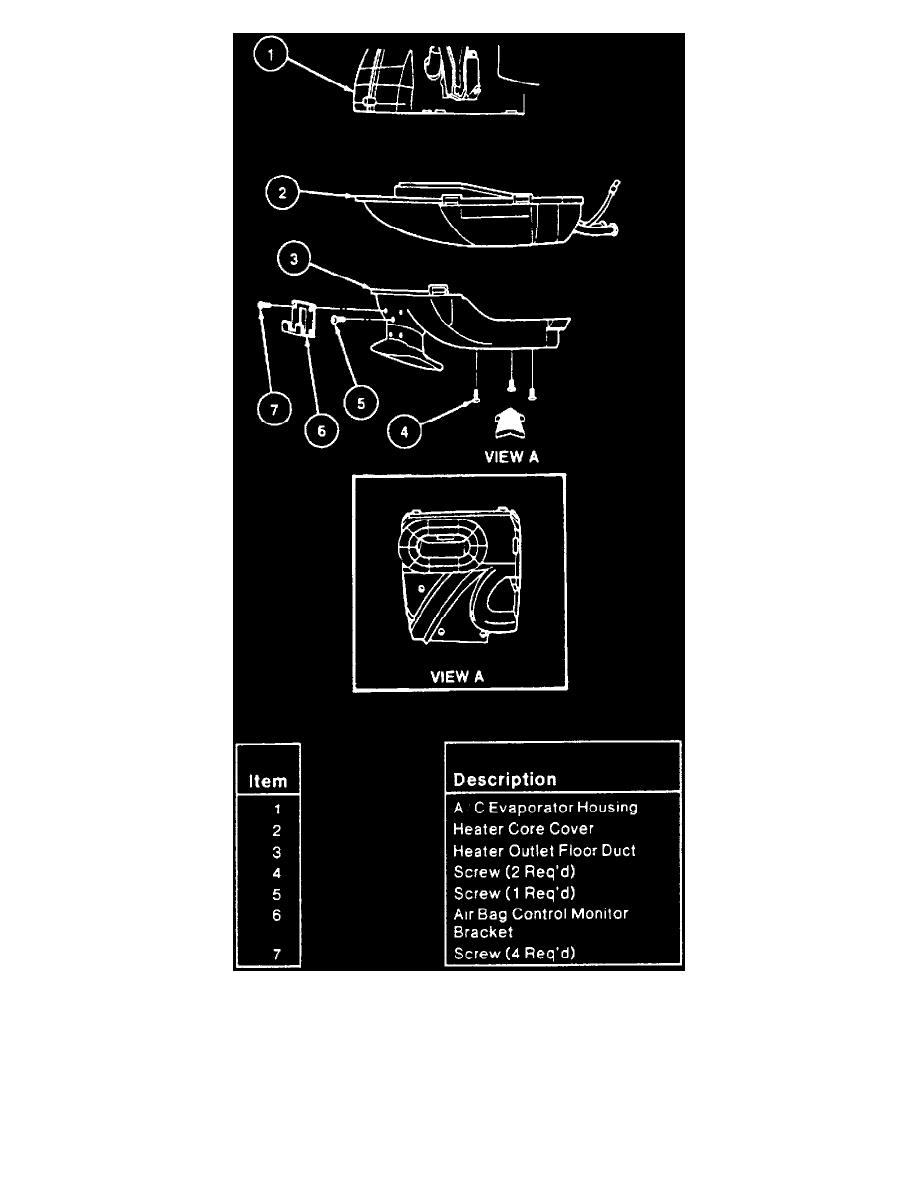

Fig. 12 Heater core removal from evaporator housing

13. Release four tabs, then remove heater core, cover and vacuum hose from evaporator housing.
