Contour V6-153 2.5L DOHC (1996)
2.

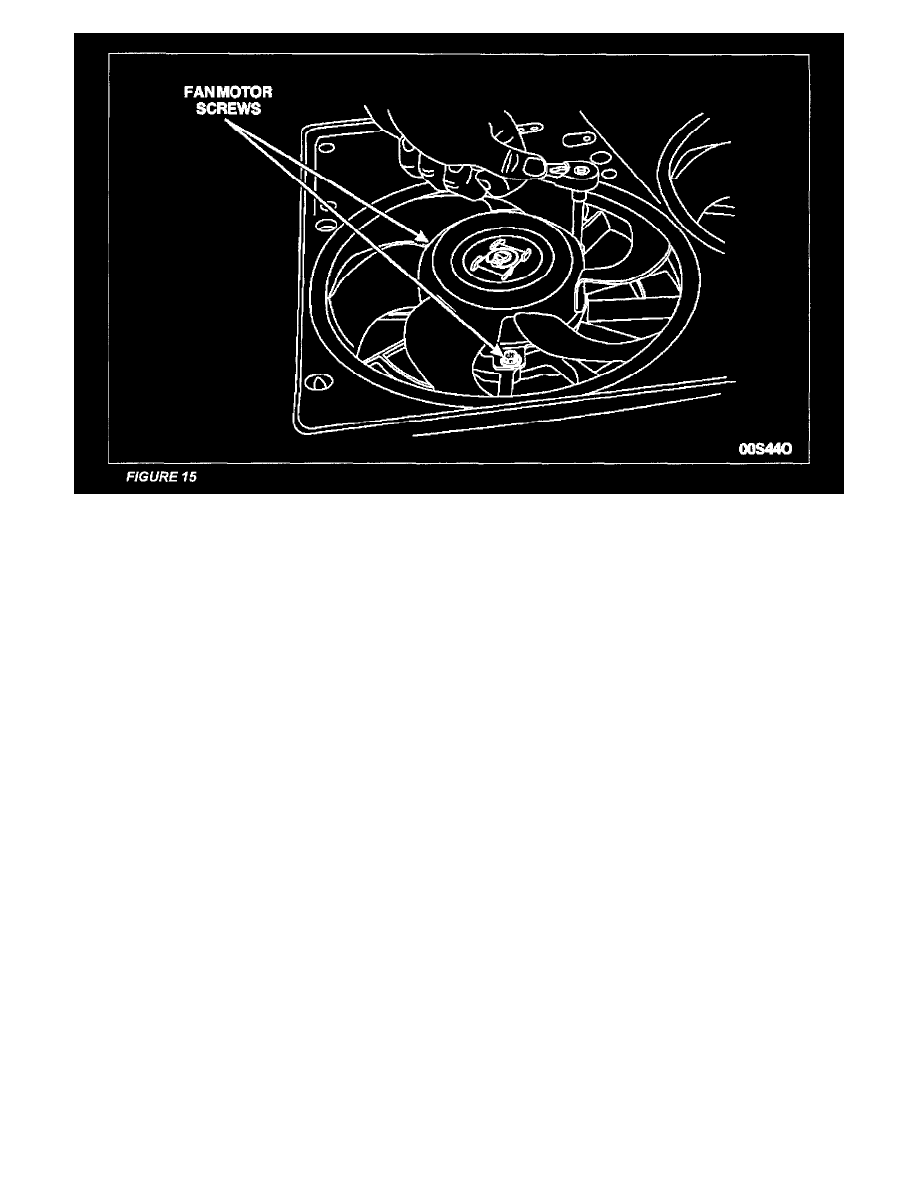

Remove the three (3) retaining screws from each motor, then remove the fan motors and blades as assemblies. See Figure 15.
NOTE:
Due to differences in motor design, there are six (6) locating pins on the plastic shroud near the motor attaching screw holes which must be
removed (broken off) to allow the new motors to fit properly.
These pins are easily removed with a small pair of pliers.
3.
Remove the six (6) locating pins (4 for the left fan, 2 for the right fan).
4.
Install the new fan motors. Be sure to center each motor on the shroud to prevent the blade from contacting the shroud. Tighten the retaining
screws to 7 Nm (62 lb-in).
