Contour V6-153 2.5L DOHC (1996)
17.

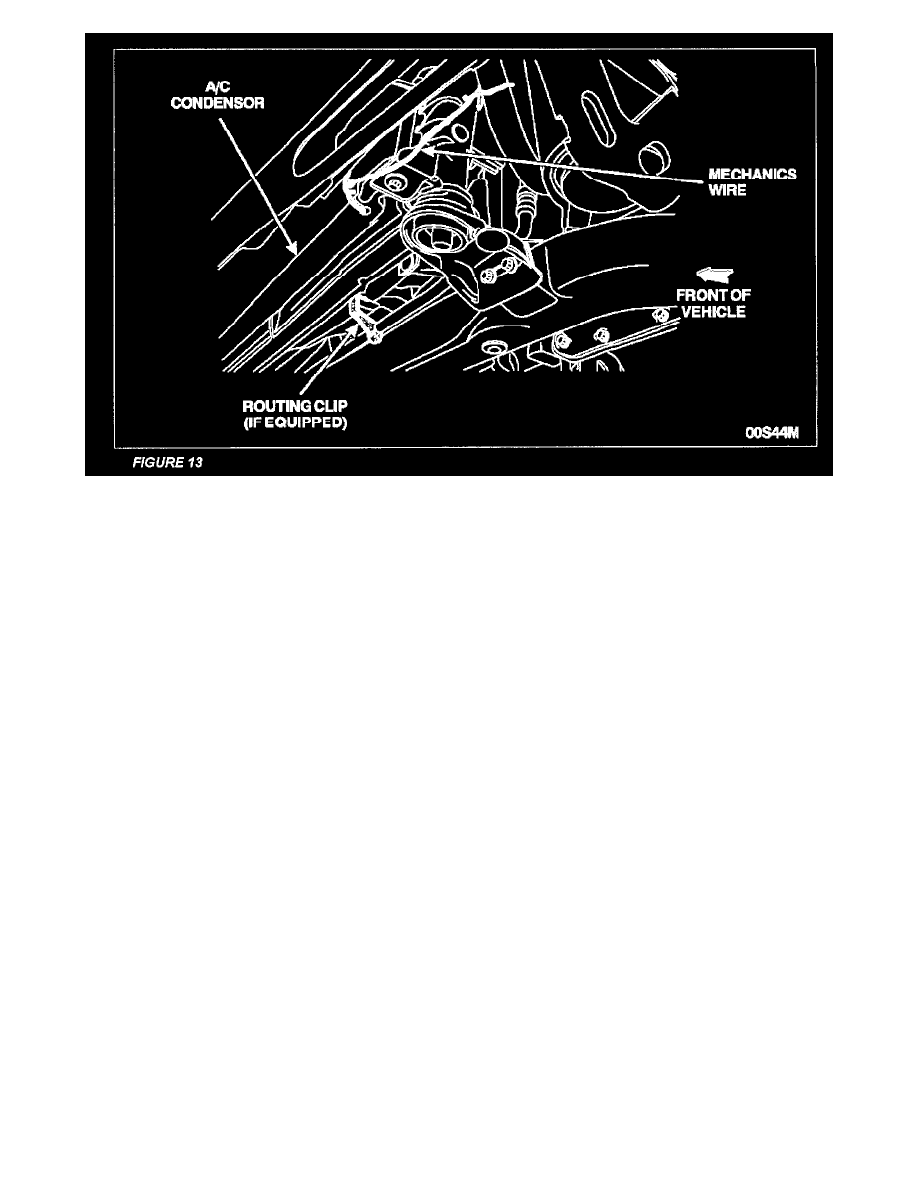

On vehicles equipped with an automatic transaxle, remove the transaxle cooling line routing clip. See Figure 13.
18.
Remove the A/C condenser mounting bolts from the radiator. See Figure 13.
19.
Secure the bottom of the A/C condenser to the A/C line with mechanics wire. See Figure 13.
20.
With the help of an assistant, lower the radiator and cooling fan assembly from the vehicle.
21.
Separate the cooling fan assembly from the radiator.
Cooling Fan Motor/Blade Replace - Supplement
CAUTION
New fan motors, blades, retaining clips and plates must be installed. Discard all old parts.
SINGLE COOLING FAN
