Contour V6-153 2.5L DOHC (1996)

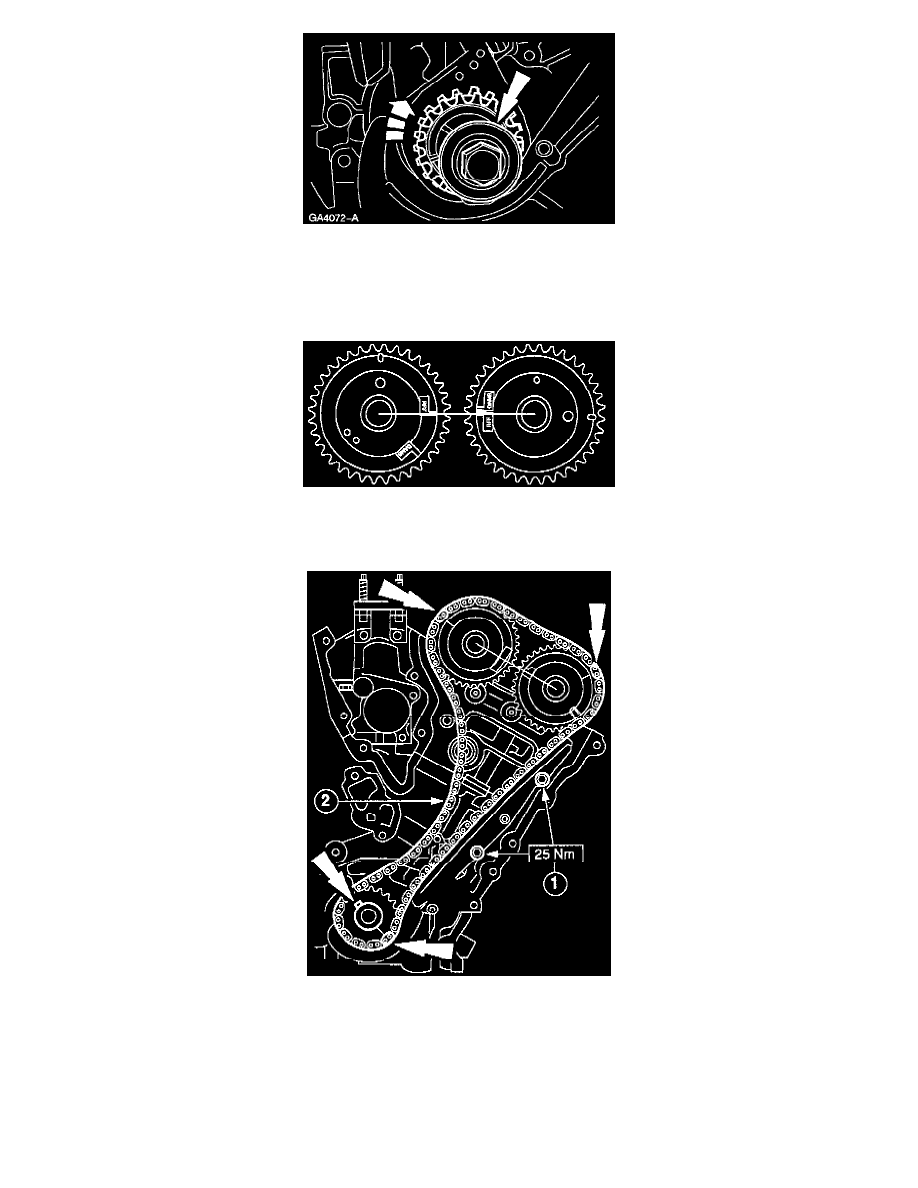

2. POSITION THE CRANKSHAFT.
-
Turn the crankshaft clockwise to position the key to the 11 o'clock position.
-
Remove the crankshaft pulley and bolt.
NOTE: Lubricate the camshafts with engine assembly lubricant D9A2-19579-D.
3. Align the LH camshaft sprockets. See: Testing and Inspection
NOTE: The colored links of the timing chain and the marks on the timing sprockets must line up.
4. Install the LH timing chain.
1
Install the LH chain guide and bolts (black material).
2
Install the timing chain.
