Contour V6-153 2.5L DOHC (1996)
set it aside for re-installation later.
5.
Inspect three-way catalytic converter as follows:
^

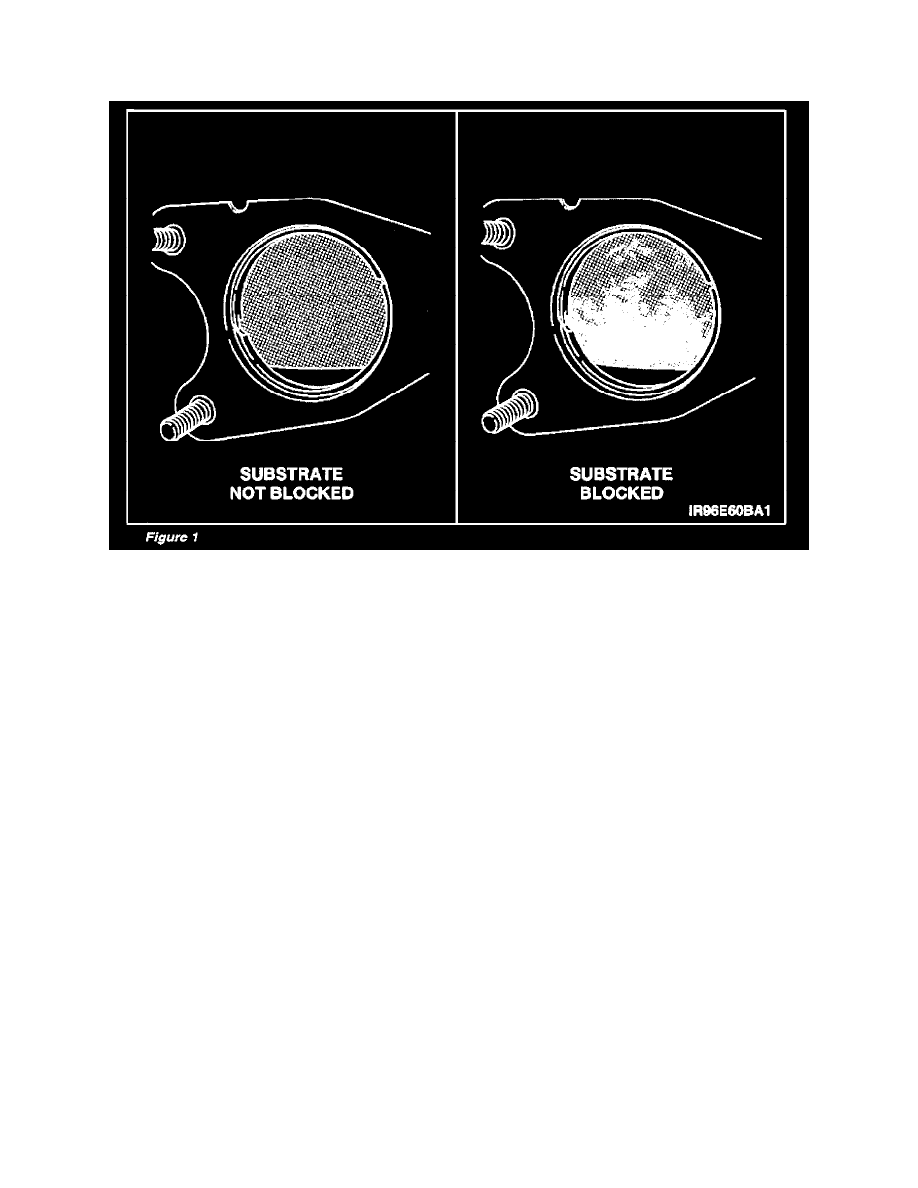

Looking through the three-way catalytic converter inlet, inspect substrate for blockage. See Figure 1. If total surface of substrate is 10 percent or
more blocked (2 square inches of blockage), the three-way catalytic converter must be replaced.
^
Blockage may not necessarily be located in one spot as illustration shows. The blockage may be spread out across the entire substrate and it may
be necessary to make an estimate of blockages on the total substrate surface.
6.
Remove Y-pipe-to-both catalyst/exhaust manifold retaining nuts.
7.
Remove Y-pipe bracket retaining nut, then remove the Y-pipe from the vehicle.
8.
Remove right wheelwell splash shield.
9.
Remove right driveshaft bearing support shield retaining nuts, then the shield.
10.
Remove right driveshaft bearing support bracket retaining bolts from the engine block. Disengage the bracket from the engine block only.
11.
Disconnect alternator electrical wiring.
12.
Remove the serpentine drive belt from the alternator pulley.
13.
Remove the alternator rear bracket retaining bolt.
14.
Remove the alternator mounting bolts, then position the alternator away from the catalyst/exhaust manifold.
15.
Remove the oxygen sensor from the rear (right) catalyst/exhaust manifold.
16.
Disconnect and discard both Differential Pressure Feedback EGR (DPFE) hoses.
17.
Remove the EGR tube from the rear (right) catalyst/exhaust manifold.
NOTE:
The exhaust manifold is attached to the engine with studs and nuts. When removing the nuts, some studs will unscrew from the head.
18.
Remove the retaining nuts from the rear (right) catalyst/exhaust manifold.
