Backup Lamp Switch: Locations

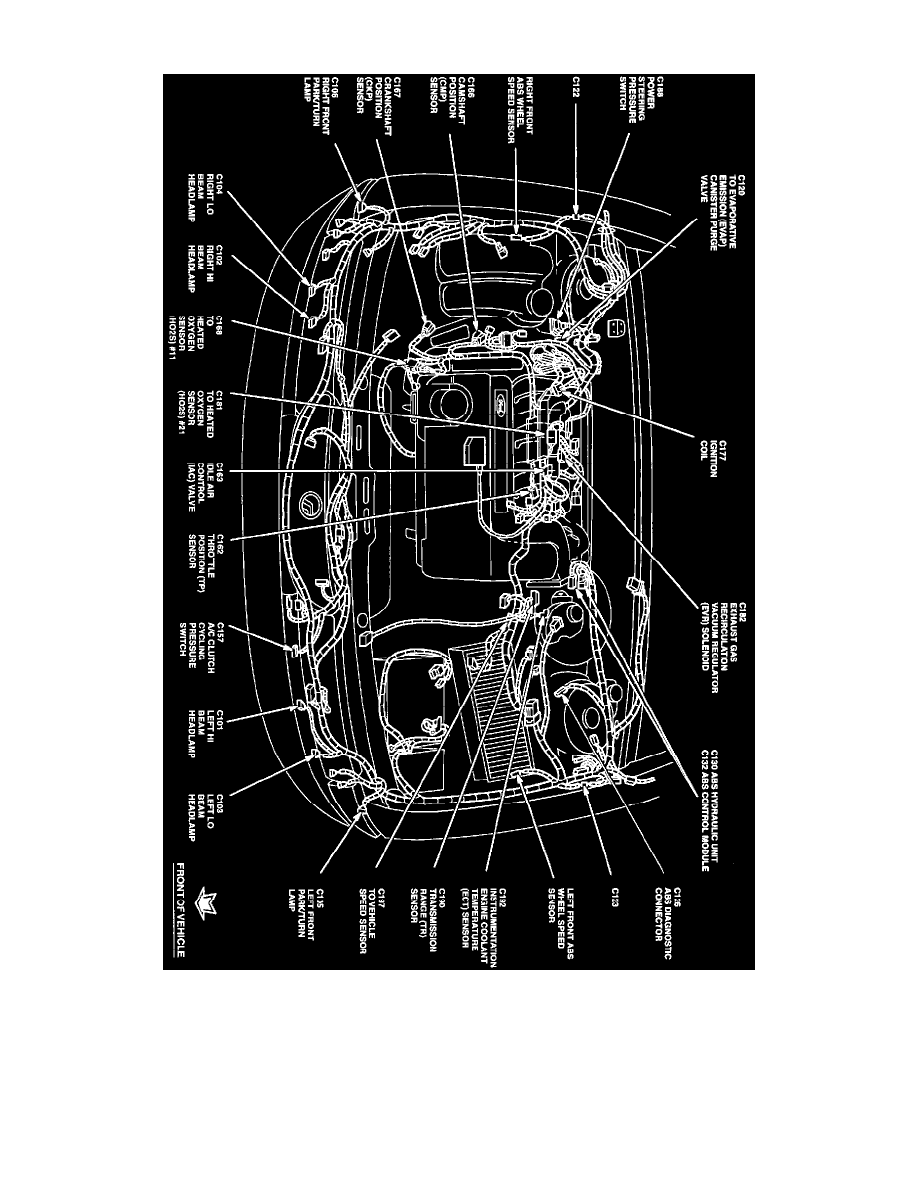

Engine View

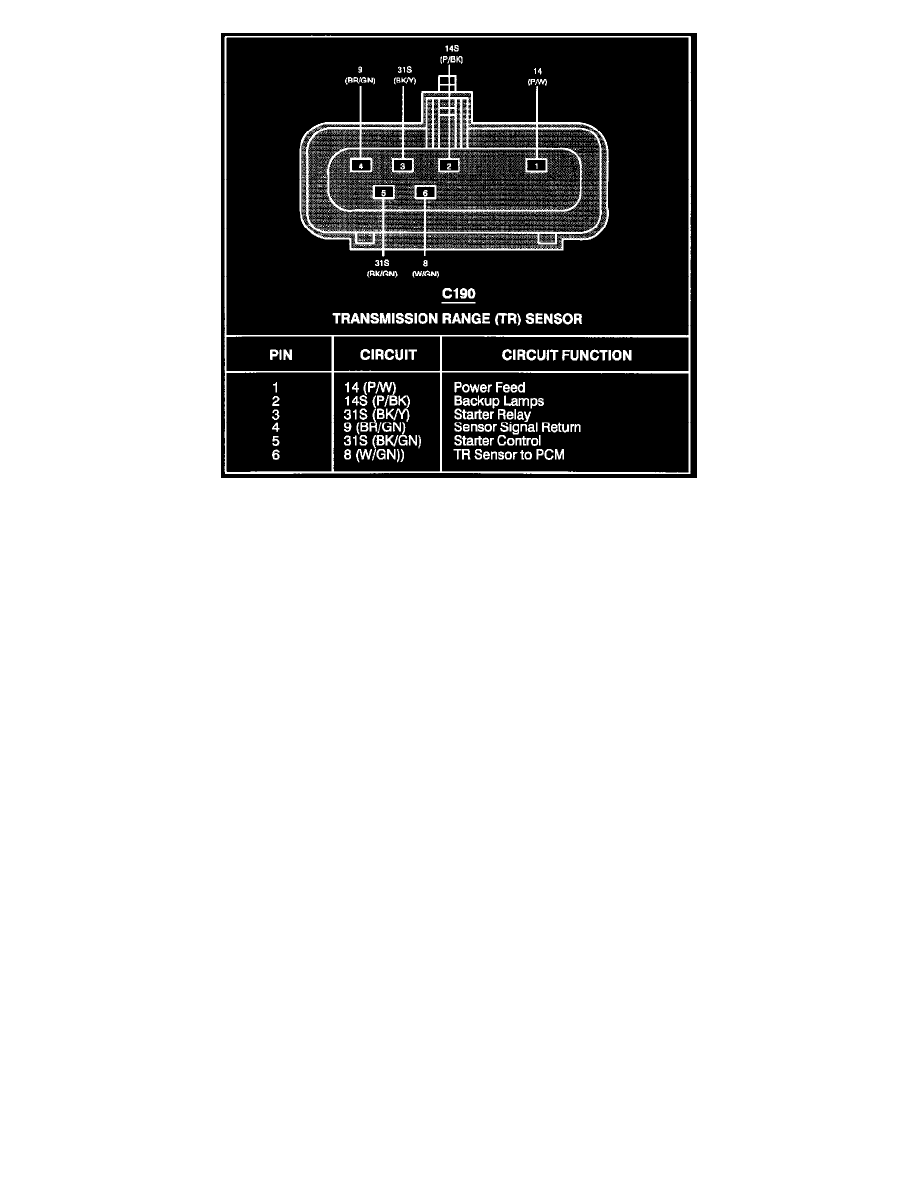

The Transmission Range Sensor is located at the LH side of the engine compartment.
