Page 1

background image

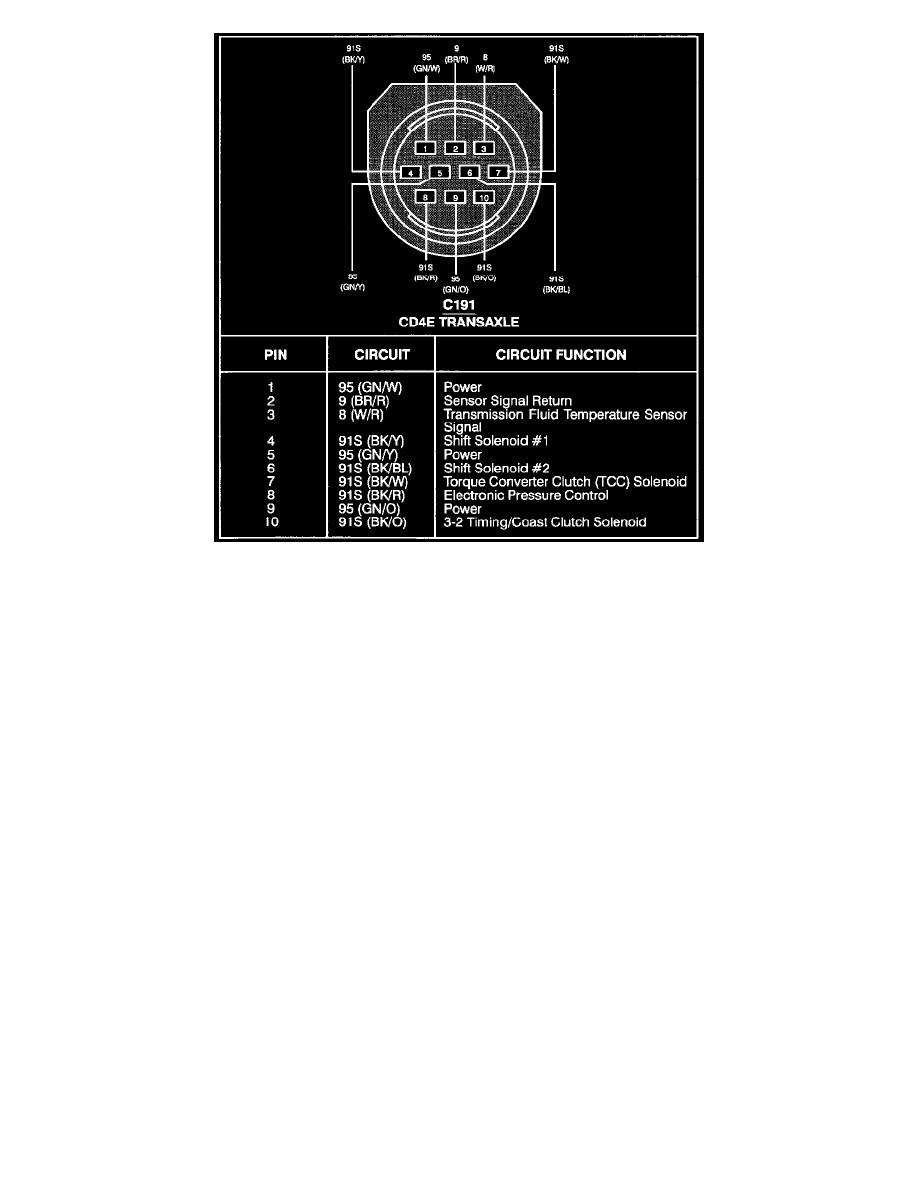

CD4E Transaxle

Powertrain Management
Transmission Control Systems / Actuators and Solenoids - Transmission and Drivetrain / Actuators and Solenoids - A/T
Shift Solenoid, A/T / Diagrams / Diagram Information and Instructions
Page 4583
