Child Restraint: Service and Repair
Child Safety Seat Installation

Some manufacturers make safety seats with a tether strap that goes over the back of the vehicle seat and attaches to an anchoring point.

Use a that is recommended for the size and weight of the child. Always follow the safety seat manufacturer's instructions when installing and using the.
When installing a be sure to use the correct safety belt buckle for that seating position and make sure the tongue is securely fastened in the buckle.

INSTALLATION

The following procedures are for installing safety seats in the front passenger seat and outer seats.

The vehicle is equipped with a dual locking mode retractor on the shoulder belt portion of the combination lap/shoulder safety belt for the front
passenger seat and rear outer seats.

If you choose to install a child safety seat or infant carrier in these seating positions:

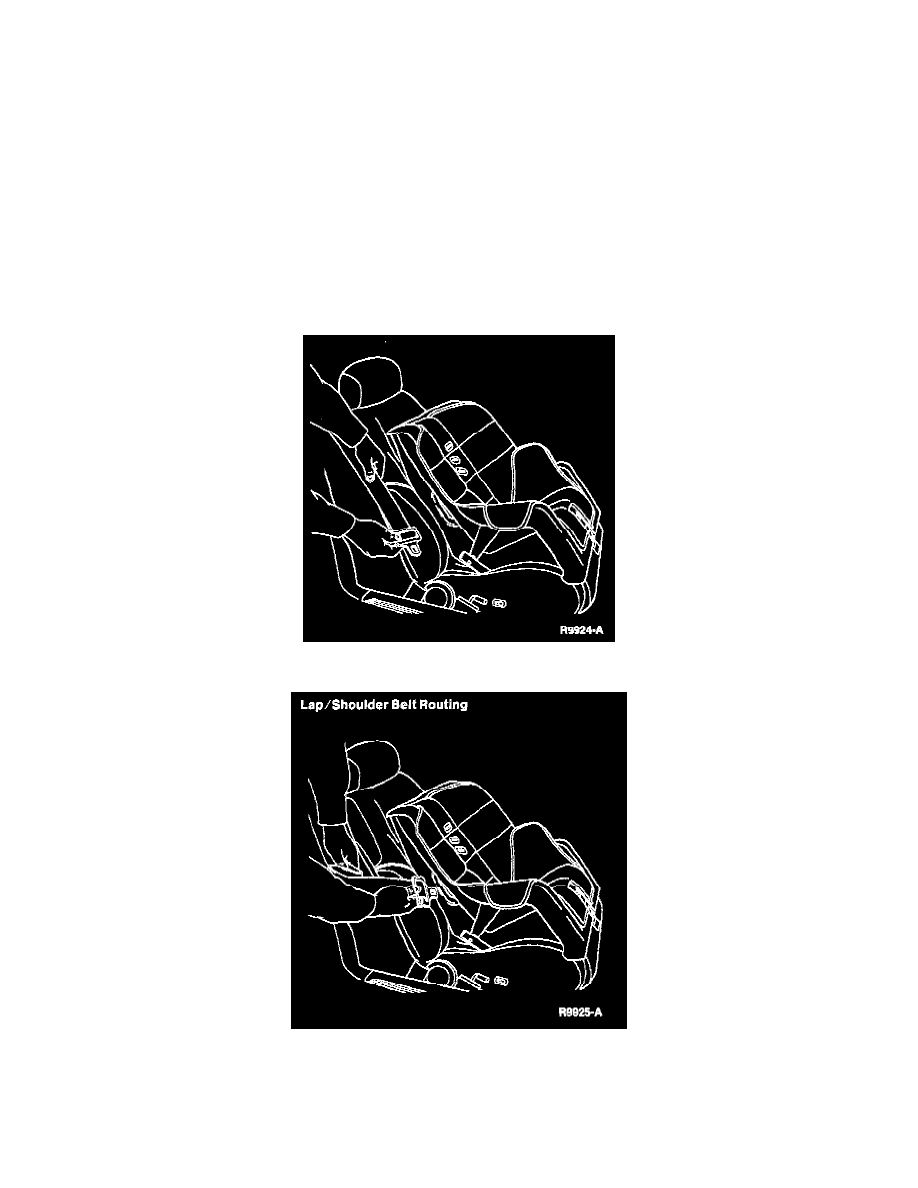

1. Position the child seat in the front passenger seat of the vehicle.

2. Pull down on shoulder belt; then pinch shoulder belt and lap belt together.
