Page 4
background image

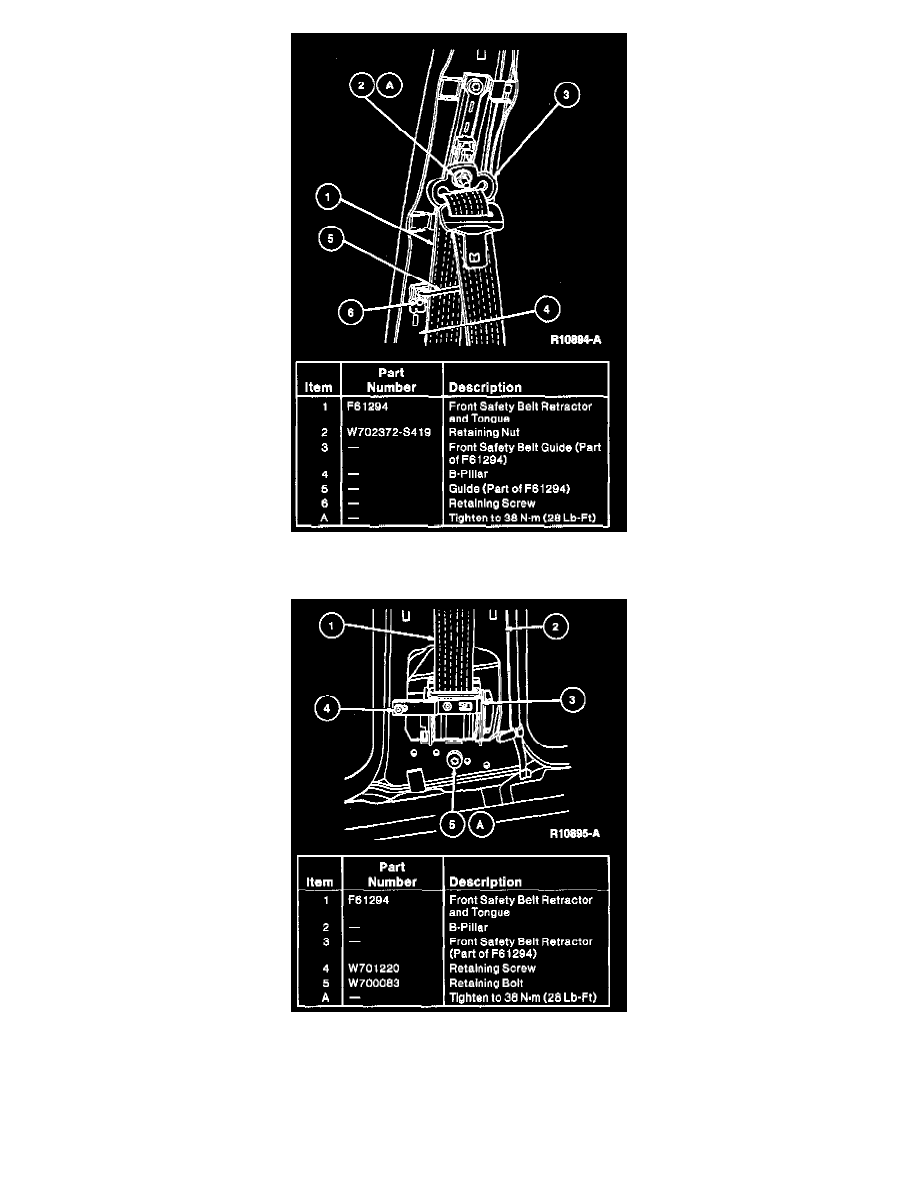

6. Remove guide retaining screw.
7. Slide safety belt through B-pillar trim.

8. Remove front seat belt retractor retaining screw and bolt.
9. Remove front safety belt retractor and tongue assembly from vehicle.

INSTALLATION

1. Position front safety belt retractor and tongue in vehicle. Make sure safety belt webbing is not twisted. If it is, remove the twist.
2. Install front safety belt retractor retaining screw. Tighten bolt to 38 Nm (28 lb ft).
3. Slide safety belt through B-pillar trim.
