Contour V6-153 2.5L DOHC (1996)
Front Steering Knuckle: Service and Repair
1. Remove wheel hub, then remove pinch bolt securing knuckle to lower arm ball joint.

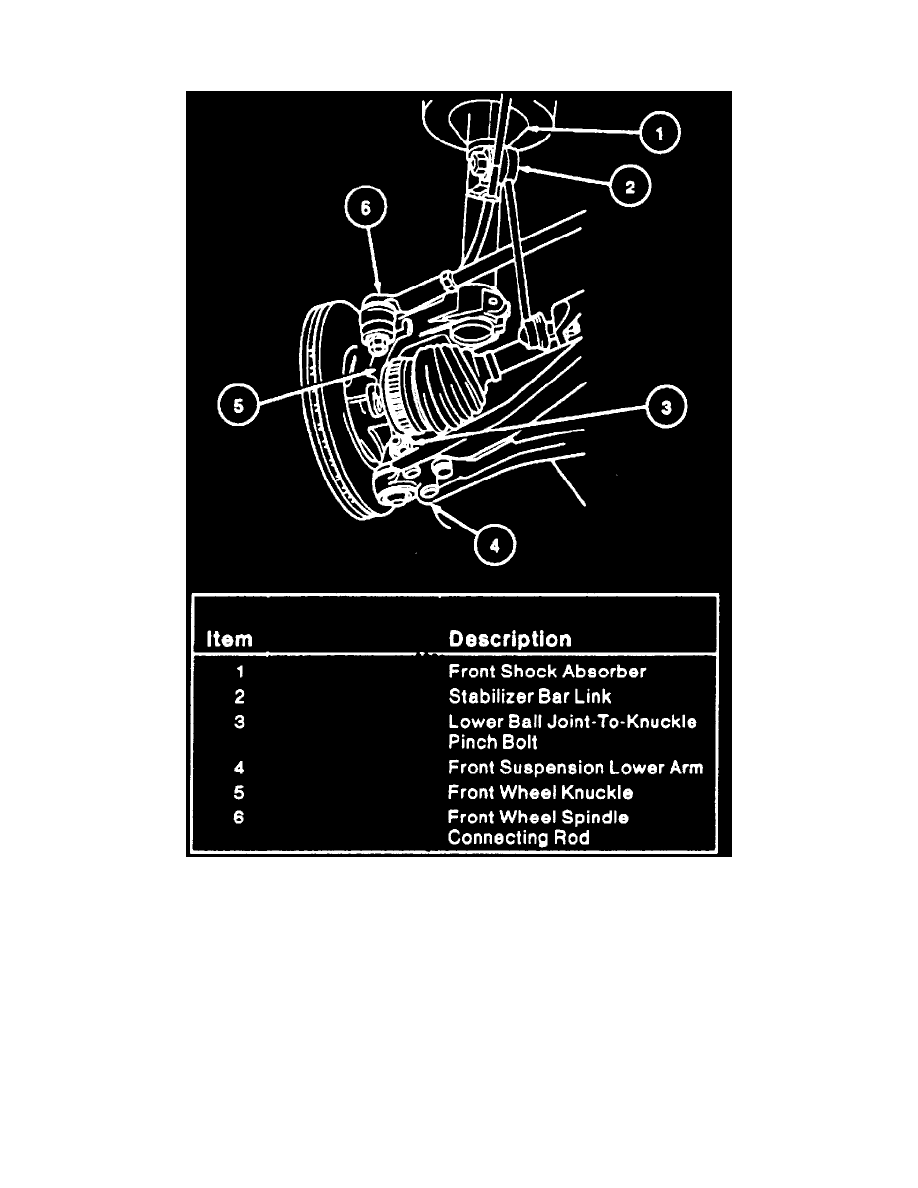

Fig. 7 Knuckle assembly
2. Remove strut to knuckle pinch bolt, then knuckle.
3. Reverse procedure to install. Install new pinch bolts and nuts on knuckle mounts.
