Contour V6-153 2.5L DOHC (1996)

Page 1
background image

Instrument Interface Module: Locations

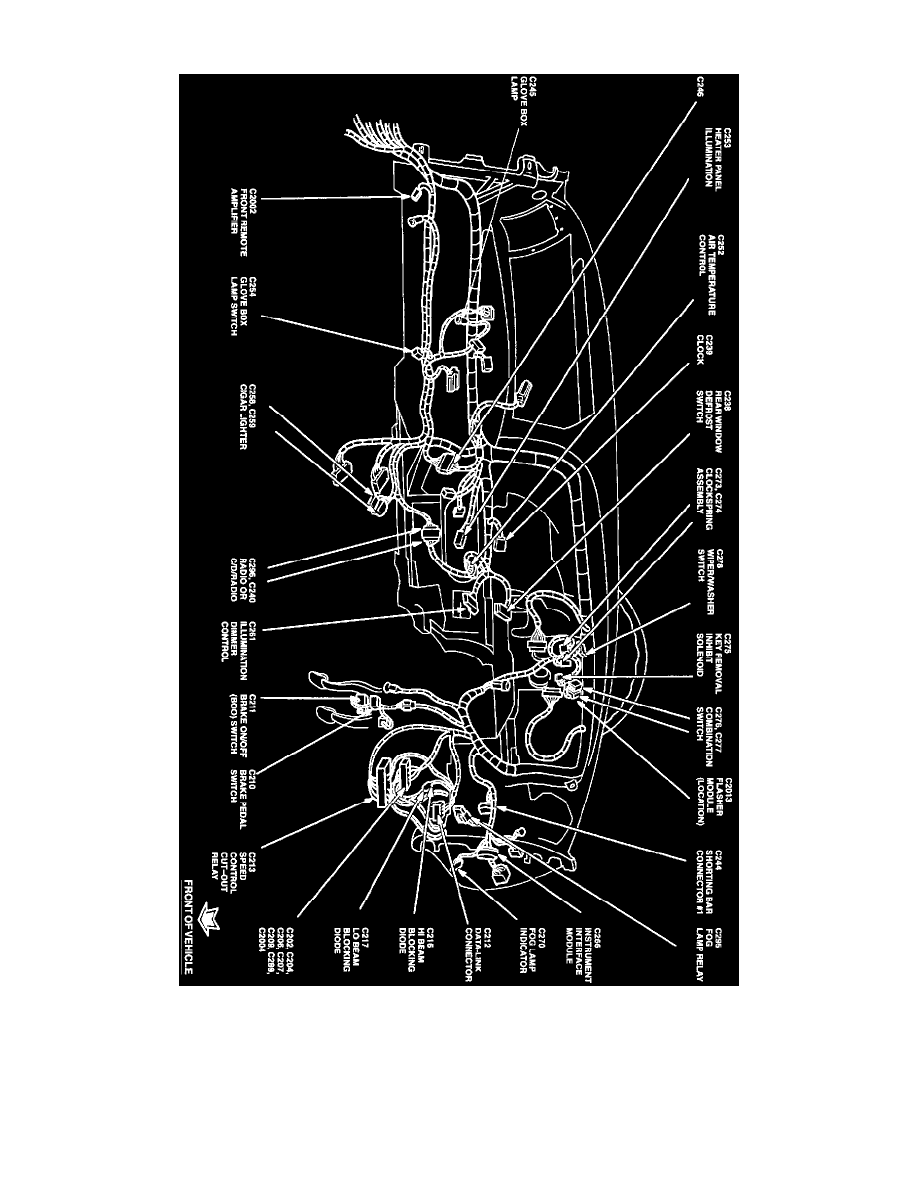

Behind Instrument Panel View

The Instrument Interface Module is located behind the LH side of the instrument panel, below the LH heater duct.
