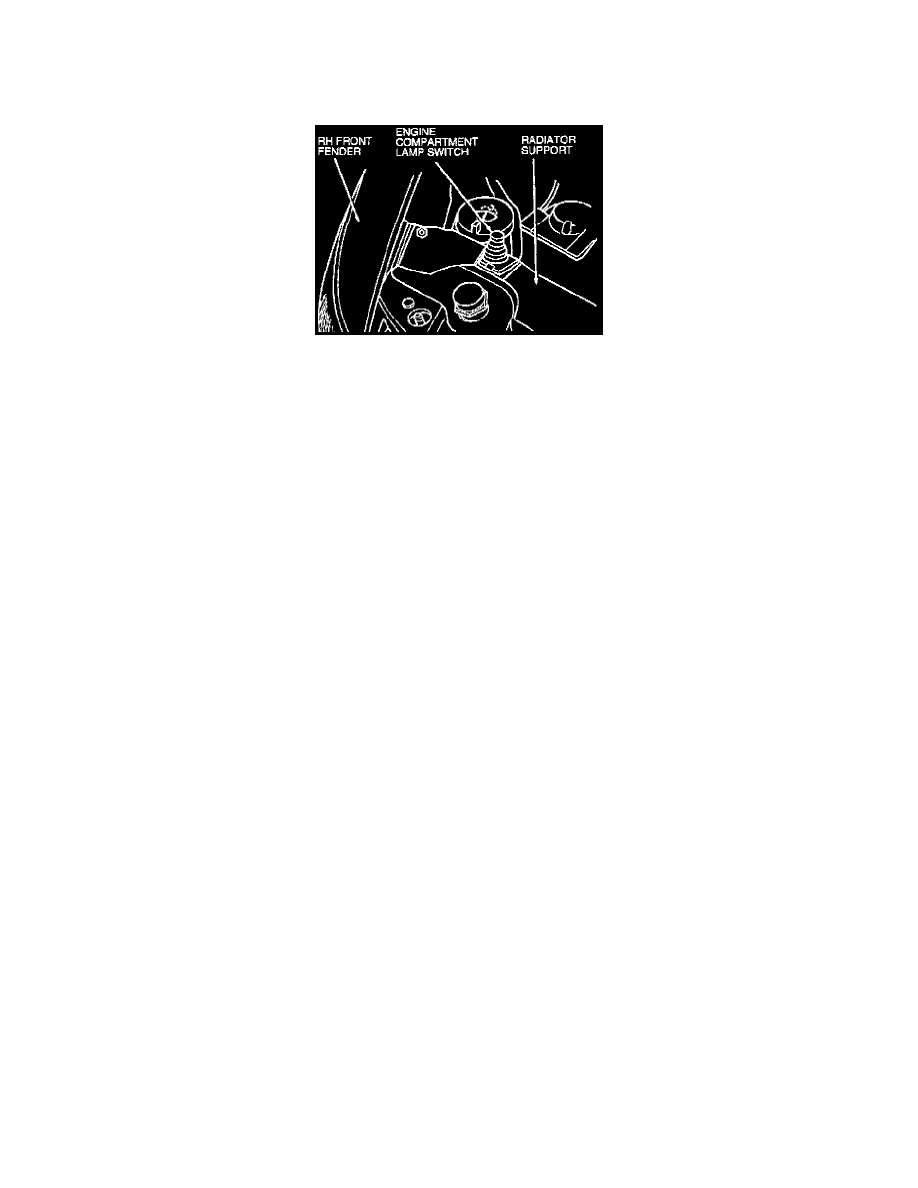

Underhood Lamp Switch: Service and Repair

REMOVAL

1. Disconnect battery ground cable.
2. Disconnect engine compartment lamp switch from wiring harness.

3. Push in on locking clips retaining engine compartment lamp switch to upper radiator support.
4. Remove engine compartment lamp switch.

INSTALLATION

1. To install, reverse removal procedure.
